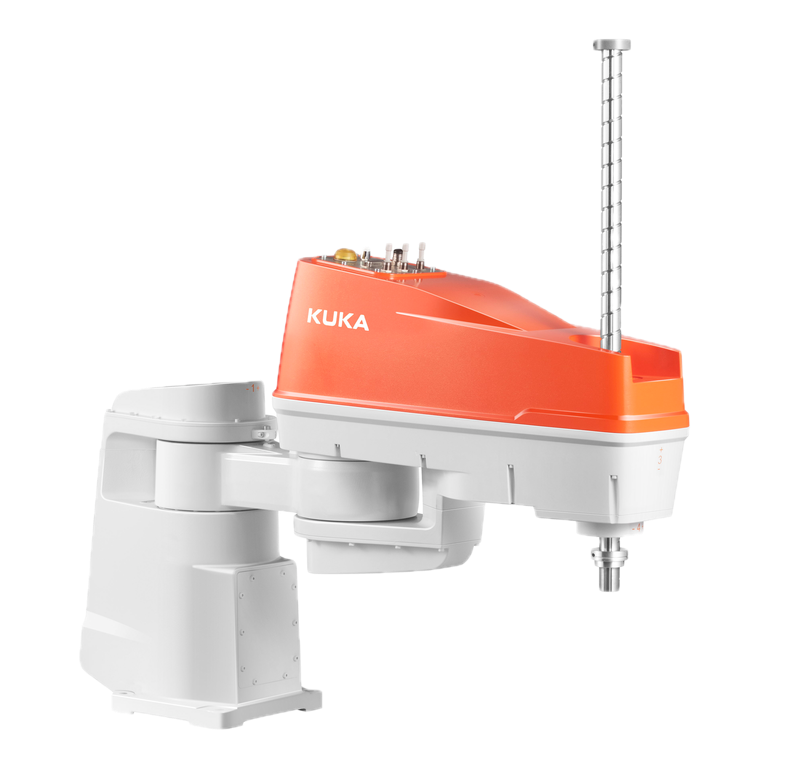

Industrial Robot KUKA KR 12 R650 Z400

KUKA KR 12 R650 Z400 - 4-axis SCARA robot with increased reach - ideal for assembly, small parts handling and packaging tasks. KUKA KR 12 R650 Z400 has a reach of 650 mm, compact design, as well as high speed and accuracy, which will increase productivity.

Features:

Fast and accurate
Working range 650 mm
Compact robot
Ability to work in limited spaces

Manufacturer

Reach: 650 mm
Payload: 12 kg

Model: KR 12 R650 Z400
Axes: 4

Solutions

Assembly
Packaging
Pick & Place

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	KUKA
Model	KR 12 R650 Z400
Country	Germany
Reach, mm	650
Axes	4

Payload, kg	12
Repeatability mm, mm	± 0.025
Weight kg, kg	49
Mounting position	Floor
Controller	KR C5 micro
Type	SCARA

Motion range, °
J1	± 145
J2	± 135
J3	- 400/1
J4	± 355

Maximum speed, °/s
J1	450
J2	665
J3	1100
J4	2700

Protection
Protection rating (IEC 60529)	IP20
