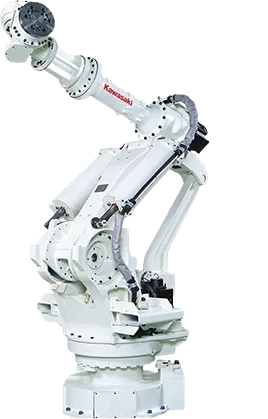

Industrial Robot Kawasaki MX420L

BX165N is a 6-axis hollow wrist industrial robot from Kawasaki, capable of handling objects weighing up to 165 kg. The BX165N features high speed and positioning accuracy, has an average working range of 2325 mm and is suitable for spot welding automation, machine maintenance, assembly and material handling.

Features:

  • High speed and positioning accuracy

  • Working range 2325 mm

  • Load capacity 165 kg

Manufacturer
Reach
2778 mm
Payload
420 kg
Model
MX420L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model MX420L
Country Japan
Reach, mm 2778
Axes 6
Payload, kg 420
Repeatability mm, mm ± 0.1
Weight kg, kg 2800
Controller F04; E04
Type Articulated
Motion range, °
J1 ± 180
J2 + 90/-45
J3 + 20/-115
J4 ± 360
J5 ± 110
J6 ± 360
Maximum speed, °/s
J1 80
J2 70
J3 70
J4 80
J5 80
J6 120
