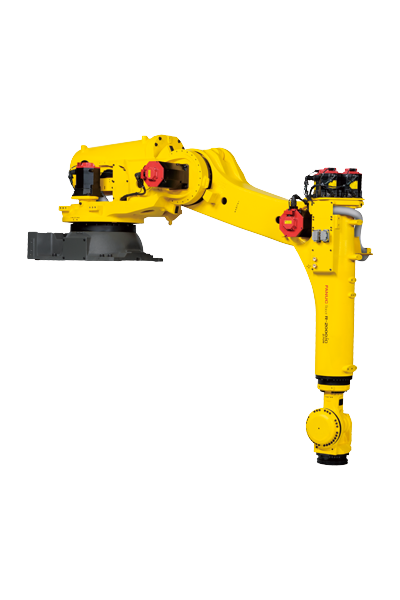

Industrial Robot FANUC R-2000iC/270R
The latest version of the R-2000iC series, completing the range of rack-mounted robots up to high payloads. With its reinforced J3 arm, this model can handle payloads of up to 270 kg. It offers outstanding flexibility thanks to its huge 3095 mm working range and rack mounting also saves you valuable floor space. Offering high performance and excellent payload capacity, it is the perfect solution for a wide range of high payload applications.
Features:
High precision
Load capacity 270 kg
Working range 3095 mm
- Manufacturer
-
- Reach
- 3095 mm
- Payload
- 270 kg
- Model
- R-2000iC/270R
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/270R |
| Country | Japan |
| Reach, mm | 3095 |
| Axes | 6 |
| Payload, kg | 270 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 1590 |
| Controller | R-30iB Plus |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 200 |
| J3 | 375 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 105 |
| J2 | 85 |
| J3 | 85 |
| J4 | 120 |
| J5 | 120 |
| J6 | 120 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
