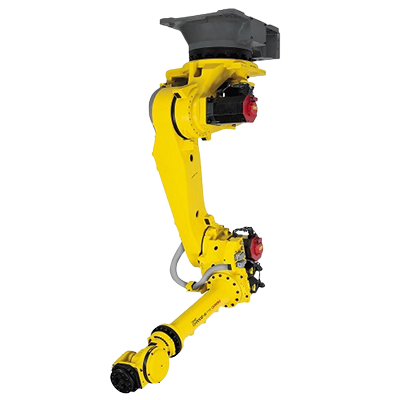

Industrial Robot FANUC R-2000iC/220U
- Manufacturer
-
- Reach
- 2518 mm
- Payload
- 220 kg
- Model
- R-2000iC/220U
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/220U |
| Country | Japan |
| Reach, mm | 2518 |
| Axes | 6 |
| Payload, kg | 220 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 1020 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 136 |
| J3 | 312 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 120 |
| J2 | 85 |
| J3 | 110 |
| J4 | 140 |
| J5 | 140 |
| J6 | 220 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
