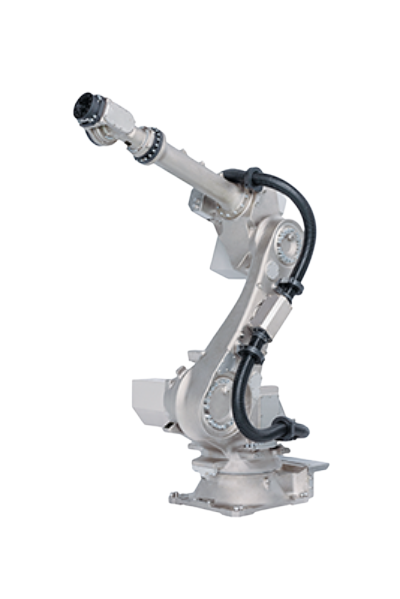

Industrial Robot FANUC R-2000iC/210WE
For a wide range of washing applications, this robust and durable robot will be able to withstand harsh operating environments (e.g. washing). Thanks to its mechanical design and IP67 protection as standard, it is resistant to wet, dusty or dirty tasks and is capable of lifting loads of up to 210kg.
Features:
High precision
Load capacity 210 kg
Working range 2450 mm
- Manufacturer
-
- Reach
- 2450 mm
- Payload
- 210 kg
- Model
- R-2000iC/210WE
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/210WE |
| Country | Japan |
| Reach, mm | 2450 |
| Axes | 6 |
| Payload, kg | 210 |
| Repeatability mm, mm | ± 0.1 |
| Weight kg, kg | 1180 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 330 |
| J2 | 141 |
| J3 | 318 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 95 |
| J2 | 85 |
| J3 | 95 |
| J4 | 120 |
| J5 | 120 |
| J6 | 190 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
