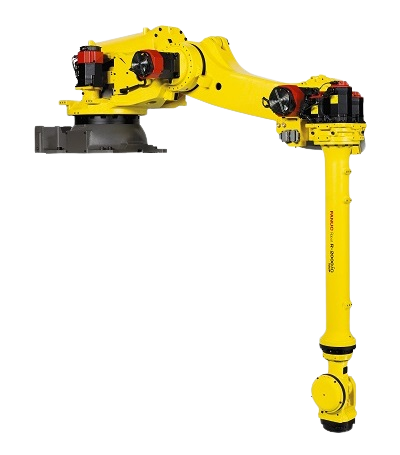

Industrial Robot FANUC R-2000iC/100P
A pedestal-mounted version of the well-proven and highly reliable R-2000iC series, the R-2000iC/100P ensures the highest productivity for press-to-press applications in the automotive and automotive components industry. Fast and versatile, it is designed to reduce cycle times across a wide range of operations.
Features:
High precision
Load capacity 100 kg
Working range 3540 mm
- Manufacturer
-
- Reach
- 3540 mm
- Payload
- 100 kg
- Model
- R-2000iC/100P
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | R-2000iC/100P |
| Country | Japan |
| Reach, mm | 3540 |
| Axes | 6 |
| Payload, kg | 100 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 1470 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 370 |
| J2 | 200 |
| J3 | 375 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 120 |
| J2 | 100 |
| J3 | 115 |
| J4 | 140 |
| J5 | 140 |
| J6 | 210 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
