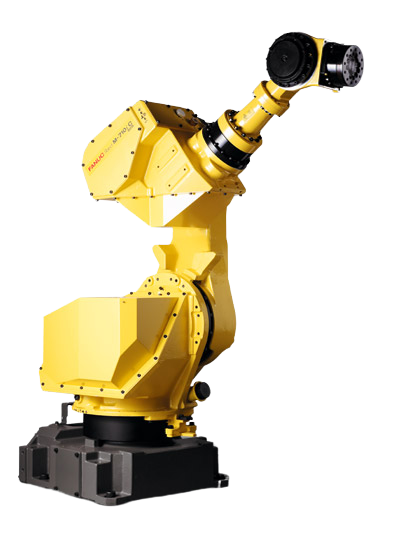

Industrial Robot FANUC M-710iC/50S
This innovative lightweight robot series features a slim wrist, rigid arm, and small footprint. High axis speeds make it extremely fast. This compact short arm version is specifically designed to reach into tight machines and workspaces.
Features:
High speed
Ability to work in confined spaces
Load capacity 50 kg
Working range 1359 mm
- Manufacturer
-
- Reach
- 1359 mm
- Payload
- 50 kg
- Model
- M-710iC/50S
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-710iC/50S |
| Country | Japan |
| Reach, mm | 1359 |
| Axes | 6 |
| Payload, kg | 50 |
| Repeatability mm, mm | ± 0.04 |
| Weight kg, kg | 545 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 169 |
| J3 | 376 |
| J4 | 720 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 175 |
| J2 | 175 |
| J3 | 175 |
| J4 | 250 |
| J5 | 250 |
| J6 | 355 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
