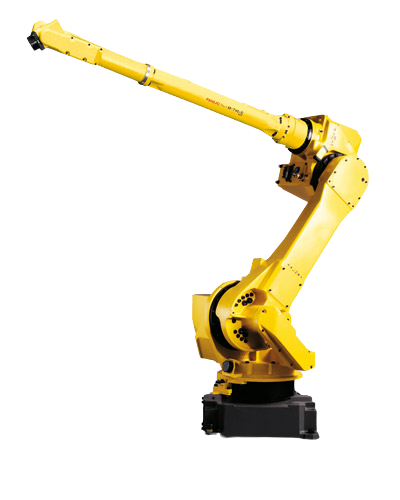

Industrial Robot FANUC M-710iC/20L
This innovative lightweight robot series features a slim wrist, rigid arm, and small footprint. High axis speeds make it extremely fast. This model will handle lighter loads over a large operating range. It is especially popular for applications such as machine tending, grinding, polishing, cleaning, cutting, and water jet washing.
Features:
High speed
Load capacity 20 kg
Working range 3110 mm
- Manufacturer
-
- Reach
- 3110 mm
- Payload
- 20 kg
- Model
- M-710iC/20L
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-710iC/20L |
| Country | Japan |
| Reach, mm | 3110 |
| Axes | 6 |
| Payload, kg | 20 |
| Repeatability mm, mm | ± 0.06 |
| Weight kg, kg | 540 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 225 |
| J3 | 432 |
| J4 | 400 |
| J5 | 280 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 175 |
| J2 | 175 |
| J3 | 180 |
| J4 | 350 |
| J5 | 360 |
| J6 | 600 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
