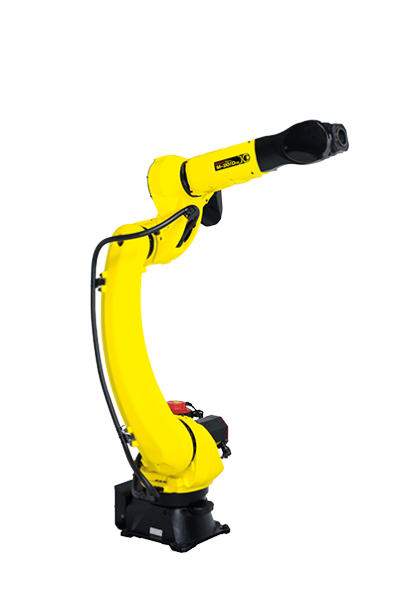

Industrial Robot FANUC M-20iD/35
With a payload of 35 kg, this robot is designed to handle large-sized materials. Equipped with superior axis speed and the highest accuracy in its class, this robot is suitable for a wide range of applications
Features:
High precision
Load capacity 35 kg
Working range 1831 mm
- Manufacturer
-
- Reach
- 1831 mm
- Payload
- 35 kg
- Model
- M-20iD/35
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-20iD/35 |
| Country | Japan |
| Reach, mm | 1831 |
| Axes | 6 |
| Payload, kg | 35 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 250 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 260 |
| J3 | 458 |
| J4 | 400 |
| J5 | 280 (360) |
| J6 | 540 (900) |
| Maximum speed, °/s | |
|---|---|
| J1 | 180 |
| J2 | 180 |
| J3 | 200 |
| J4 | 350 |
| J5 | 350 |
| J6 | 400 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
