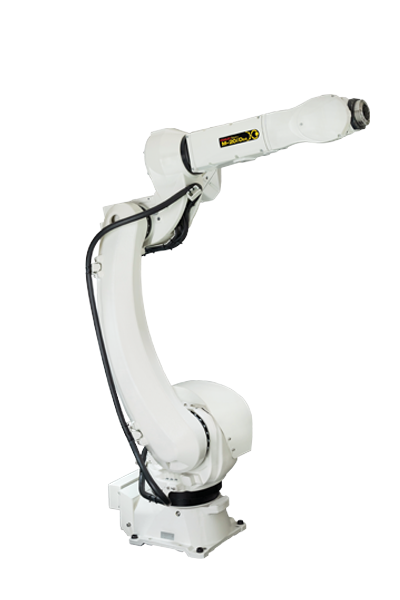

Industrial Robot FANUC M-20iD/25 Food grade
Delivering high performance in a small footprint, the FANUC M-20iD/25 food-grade robot is designed for food industry users requiring high-speed, high-payload robots. It features food-grade oil on all axes, stainless steel wrist flanges, motor housings, corrosion-resistant screws, white epoxy paint, and protection against severe dust and liquids combined with higher axis speeds and motion performance.
Features:
High precision
High speed
Load capacity 25 kg
Working range 1831 mm
- Manufacturer
-
- Reach
- 1831 mm
- Payload
- 25 kg
- Model
- M-20iD/25 Food grade
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-20iD/25 Food grade |
| Country | Japan |
| Reach, mm | 1831 |
| Axes | 6 |
| Payload, kg | 25 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 250 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 260 |
| J3 | 458 |
| J4 | 400 |
| J5 | 280 (360) |
| J6 | 540 (900) |
| Maximum speed, °/s | |
|---|---|
| J1 | 210 |
| J2 | 210 |
| J3 | 265 |
| J4 | 420 |
| J5 | 420 |
| J6 | 720 |
| Protection | |
|---|---|
| body | IP65 |
| wrist & J3 arm | IP67 |
