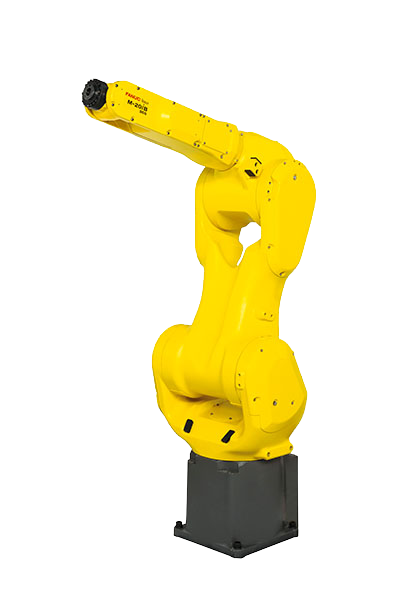

Industrial Robot FANUC M-20iB/35S
Equipped with a lightweight arm and straight wrist, and weighing only 205 kg, the M-20iB/35S offers high inertia and can lift a total weight of 35 kg. This, combined with its compact design and narrow arm, makes it ideal for a wide range of high-load machine care and loading applications in a small footprint.
Features:
High precision
Load capacity 35 kg
Working range 1445 mm
- Manufacturer
-
- Reach
- 1445 mm
- Payload
- 35 kg
- Model
- M-20iB/35S
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-20iB/35S |
| Country | Japan |
| Reach, mm | 1445 |
| Axes | 6 |
| Payload, kg | 35 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 205 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (360) |
| J2 | 240 |
| J3 | 301.5 |
| J4 | 400 |
| J5 | 260 |
| J6 | 540 |
| Maximum speed, °/s | |
|---|---|
| J1 | 205 |
| J2 | 205 |
| J3 | 260 |
| J4 | 415 |
| J5 | 415 |
| J6 | 880 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
