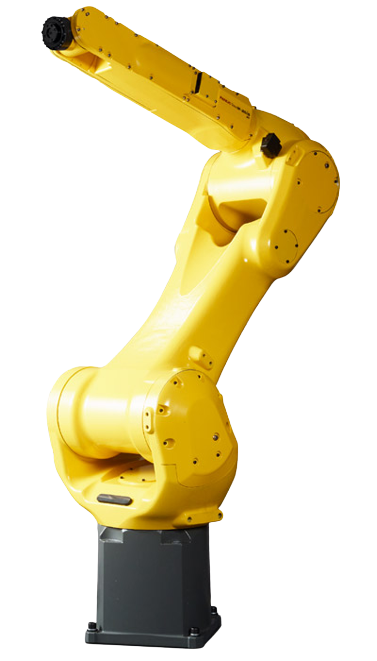

Industrial Robot FANUC M-20iB/25
The M-20iB/25 is the first robot in the new FANUC M-20iB robot generation. Combining a lightweight hollow upper arm and wrist with advanced servo technology, the M-20iB series is designed to achieve faster cycles and increased throughput across a wide range of applications. The models are fully encapsulated to IP67 standards, making them ideally suited for wet, dirty and harsh processes such as automated deburring.
Features:
High precision
Load capacity 25 kg
Working range 1853 mm
- Manufacturer
-
- Reach
- 1853 mm
- Payload
- 25 kg
- Model
- M-20iB/25
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-20iB/25 |
| Country | Japan |
| Reach, mm | 1853 |
| Axes | 6 |
| Payload, kg | 25 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 210 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (360) |
| J2 | 240 |
| J3 | 303 |
| J4 | 400 |
| J5 | 290 |
| J6 | 540 |
| Maximum speed, °/s | |
|---|---|
| J1 | 205 |
| J2 | 205 |
| J3 | 260 |
| J4 | 415 |
| J5 | 415 |
| J6 | 880 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
