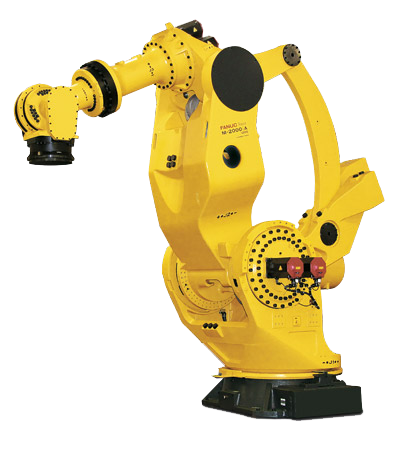

Industrial Robot FANUC M-2000iA/2300
With a massive 2.3 ton capacity, the M-2000iA/2300 is the largest lift in its class. Ideally suited to heavy-duty material handling applications that require even stronger wrists, this machine will easily lift and position entire cars or load bulky castings onto its rigging.
Features:
High precision
Load capacity 2300 kg
Working range 3734 mm
- Manufacturer
-
- Reach
- 3734 mm
- Payload
- 2300 kg
- Model
- M-2000iA/2300
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-2000iA/2300 |
| Country | Japan |
| Reach, mm | 3734 |
| Axes | 6 |
| Payload, kg | 2300 |
| Repeatability mm, mm | ± 0.18 |
| Weight kg, kg | 11000 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 330 |
| J2 | 160 |
| J3 | 165 |
| J4 | 720 |
| J5 | 240 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 20 |
| J2 | 14 |
| J3 | 14 |
| J4 | 18 |
| J5 | 18 |
| J6 | 40 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
