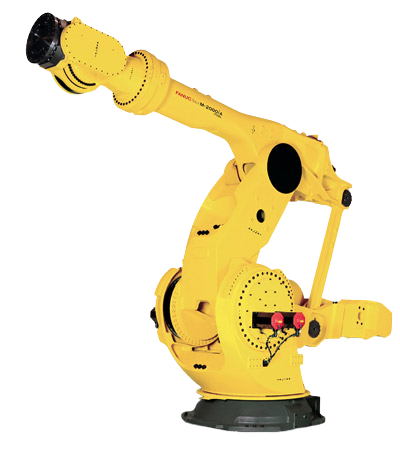

Industrial Robot FANUC M-2000iA/1700L
With a payload capacity of 1.7 tonnes and a travel range of 6.2 metres, it offers maximum flexibility when handling large and heavy objects. Capable of lifting and positioning entire vehicle bodies with ease within a wide working range, this robot is designed to improve your workflow, increase efficiency and reduce costs.
Features:
High precision
Load capacity 0 kg
Working range 59 mm
- Manufacturer
-
- Reach
- 4683 mm
- Payload
- 1700 kg
- Model
- M-2000iA/1700L
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-2000iA/1700L |
| Country | Japan |
| Reach, mm | 4683 |
| Axes | 6 |
| Payload, kg | 1700 |
| Repeatability mm, mm | ± 0.27 |
| Weight kg, kg | 12500 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 330 |
| J2 | 160 |
| J3 | 165 |
| J4 | 720 |
| J5 | 240 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 20 |
| J2 | 14 |
| J3 | 14 |
| J4 | 18 |
| J5 | 18 |
| J6 | 40 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
