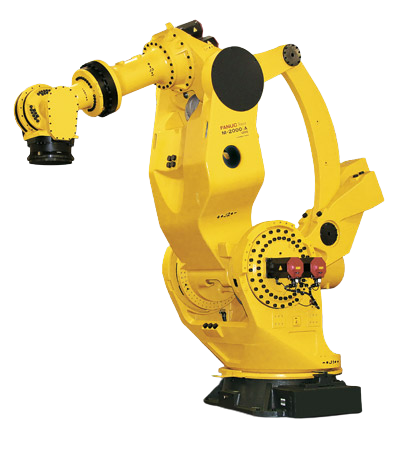

Industrial Robot FANUC M-2000iA/1200
Until the introduction of the M-2000iA/2300, the M-2000iA/1200 was the most powerful 6-axis robot on the market. But this powerful heavy-duty robot still has what it takes to handle all but the most demanding high-payload material handling applications.
Features:
High precision
Load capacity 1200 kg
Working range 3734 mm
- Manufacturer
-
- Reach
- 3734 mm
- Payload
- 1200 kg
- Model
- M-2000iA/1200
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-2000iA/1200 |
| Country | Japan |
| Reach, mm | 3734 |
| Axes | 6 |
| Payload, kg | 1200 |
| Repeatability mm, mm | ± 0.18 |
| Weight kg, kg | 8600 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 330 |
| J2 | 160 |
| J3 | 165 |
| J4 | 720 |
| J5 | 240 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 45 |
| J2 | 30 |
| J3 | 30 |
| J4 | 50 |
| J5 | 50 |
| J6 | 70 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
