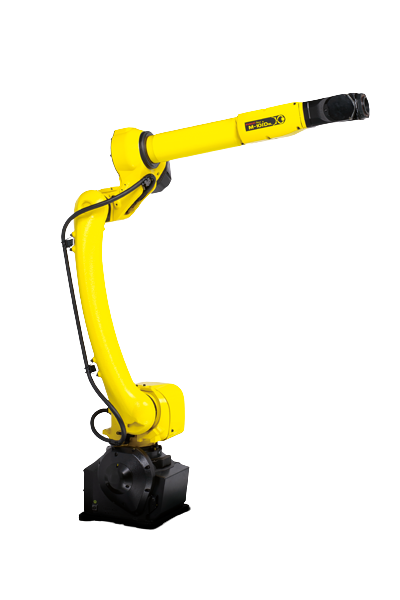

Industrial Robot FANUC M-10iD/8L
Ideally suited for working in compact robot cells, the slim M-10iD/8L takes up little space and can be installed upside down or angled for even more flexibility. For easy and reliable routing of sensor or camera cables, air ducts and other utilities, services are routed through the hollow arm, wrist and body of the robot.
Особенности:
Высокая скорость
Грузоподъёмность 0 кг
Рабочий диапазон 59 мм
- Manufacturer
-
- Reach
- 2032 mm
- Payload
- 8 kg
- Model
- M-10iD/8L
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-10iD/8L |
| Country | Japan |
| Reach, mm | 2032 |
| Axes | 6 |
| Payload, kg | 8 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 180 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 235 |
| J3 | 455 |
| J4 | 380 |
| J5 | 360 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 210 |
| J2 | 210 |
| J3 | 220 |
| J4 | 430 |
| J5 | 450 |
| J6 | 720 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
