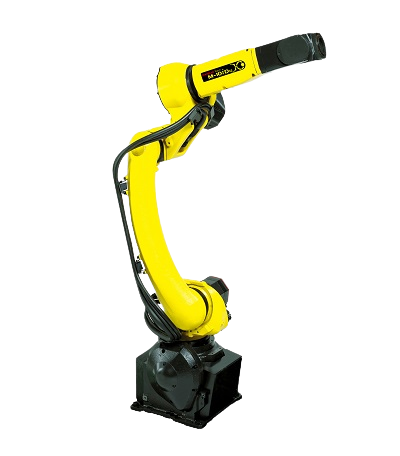

Industrial Robot FANUC M-10iD/12
The new M-10iD/12 robot achieves the highest axis speeds and accuracy in its class. Especially for narrow workspaces or when mounted upside down, this highly versatile robot offers complete working range, reach and travel for higher production productivity.
Features:
High precision
Load capacity 12 kg
Working range 1,441 mm
- Manufacturer
-
- Reach
- 1441 mm
- Payload
- 12 kg
- Model
- M-10iD/12
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-10iD/12 |
| Country | Japan |
| Reach, mm | 1441 |
| Axes | 6 |
| Payload, kg | 12 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 145 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 235 |
| J3 | 455 |
| J4 | 380 |
| J5 | 240 |
| J6 | 540 |
| Maximum speed, °/s | |
|---|---|
| J1 | 260 |
| J2 | 240 |
| J3 | 260 |
| J4 | 430 |
| J5 | 450 |
| J6 | 720 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
