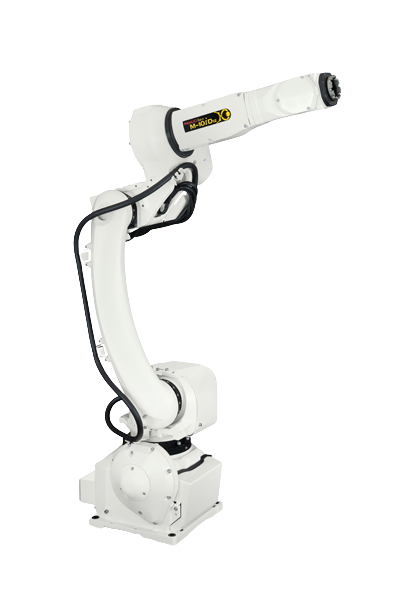

Industrial Robot FANUC M-10iD/12 Food grade
The M-10iD/12 food grade robot is designed for food industry users who need high speed and high payload robots. It features food grade oil on all axes, stainless steel wrist flanges, motor housings, corrosion resistant screws, white epoxy paint and protection against dust and severe liquids.
Features:
High speed
Load capacity 12 kg
Working range 1441 mm
- Manufacturer
-
- Reach
- 1441 mm
- Payload
- 12 kg
- Model
- M-10iD/12 Food grade
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-10iD/12 Food grade |
| Country | Japan |
| Reach, mm | 1441 |
| Axes | 6 |
| Payload, kg | 12 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 145 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 235 |
| J3 | 455 |
| J4 | 380 |
| J5 | 360 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 260 |
| J2 | 240 |
| J3 | 260 |
| J4 | 430 |
| J5 | 450 |
| J6 | 720 |
| Protection | |
|---|---|
| body | IP65 |
| wrist & J3 arm | IP67 |
