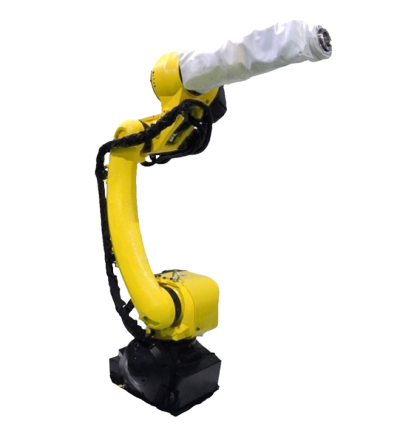

Industrial Robot FANUC M-10iD/12 Dustproof
The new M-10iD/12 dustproof robot comes with an IP67 motor housing, epoxy paint, and a J6 arm protection cover to protect against dust and liquids. Perfect for applications in the forging, metal casting, and ceramics industries, this highly versatile robot offers complete working range, reach, and travel for higher production productivity.
Features:
High precision
Load capacity 12 kg
Working range 1441 mm
- Manufacturer
-
- Reach
- 1441 mm
- Payload
- 12 kg
- Model
- M-10iD/12 Dustproof
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-10iD/12 Dustproof |
| Country | Japan |
| Reach, mm | 1441 |
| Axes | 6 |
| Payload, kg | 12 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 145 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 235 |
| J3 | 455 |
| J4 | 380 |
| J5 | 240 |
| J6 | 540 |
| Maximum speed, °/s | |
|---|---|
| J1 | 260 |
| J2 | 240 |
| J3 | 260 |
| J4 | 430 |
| J5 | 450 |
| J6 | 720 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
