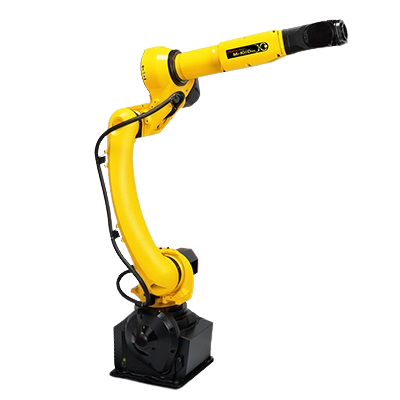

Industrial Robot FANUC M-10iD/10L
The new long arm model of the M-10 series features outstanding axis speeds and the highest accuracy in its class. Specially designed for installation in tight spaces, this highly flexible robot can work on relatively large parts thanks to its large horizontal travel and can also be installed upside down or mounted at an angle.
Features:
High precision
Load capacity 10 kg
Working range 1,636 mm
- Manufacturer
-
- Reach
- 1636 mm
- Payload
- 10 kg
- Model
- M-10iD/10L
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-10iD/10L |
| Country | Japan |
| Reach, mm | 1636 |
| Axes | 6 |
| Payload, kg | 10 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 150 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 235 |
| J3 | 455 |
| J4 | 380 |
| J5 | 360 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 260 |
| J2 | 240 |
| J3 | 260 |
| J4 | 430 |
| J5 | 450 |
| J6 | 720 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP67 |
