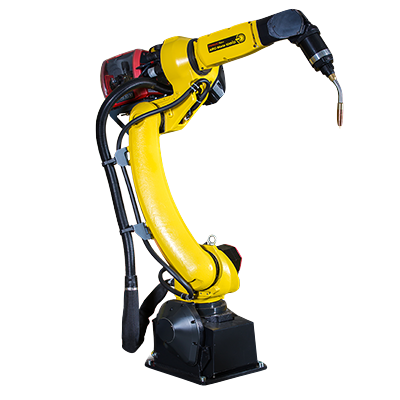

Industrial Robot FANUC ARC Mate 100iD
The ARC Mate 100iD is a next-generation robotic welding system known for its high performance and quick integration into the welding process. Its sophisticated curved design allows the 100iD to operate in the most compact welding chambers, effectively utilizing space.
Key Features:
- Hollow and compact design
- Large working radius
- High repeatability
- Ability to operate in confined spaces
- Manufacturer
-
- Reach
- 1441 mm
- Payload
- 12 kg
- Model
- ARC Mate 100iD
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | ARC Mate 100iD |
| Country | Japan |
| Reach, mm | 1441 |
| Axes | 6 |
| Payload, kg | 12 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 145 |
| Mounting position | Floor, Upside down, Angle |
| Controller | R-30iB Plus |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 340 (370) |
| J2 | 235 |
| J3 | 455 |
| J4 | 380 |
| J5 | 360 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 260 |
| J2 | 240 |
| J3 | 260 |
| J4 | 430 |
| J5 | 450 |
| J6 | 720 |
| Protection | |
|---|---|
| Body standard/optional | IP54 |
| Wrist & J3 arm standard/optional | IP67 |
