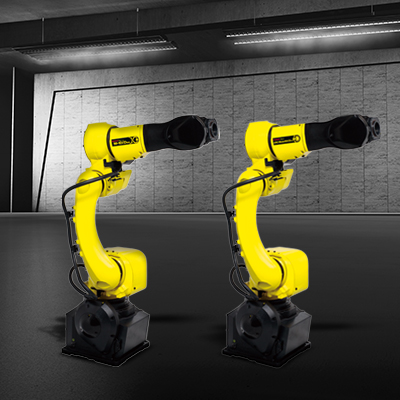

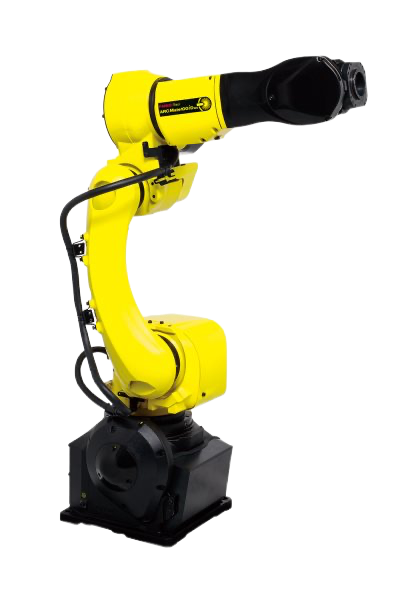

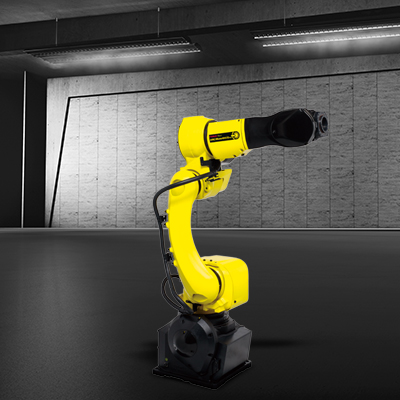

Industrial Robot FANUC ARC Mate 100iD/16S
Welding robot Fanuc 100iD/16S is a hollow wrist compact robot from ARC mate serie. 100iD/16S was special designed for welding in narrow spaces.
Features ARC Mate 100iD/16S
high precision and speed

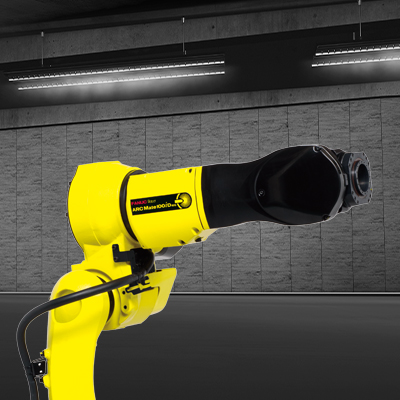

large hollow wrist
- Manufacturer
-
- Reach
- 1103 mm
- Payload
- 16 kg
- Model
- ARC Mate 100iD/16S
- Axes
- 6
- Industries
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | ARC Mate 100iD/16S |
| Country | Japan |
| Reach, mm | 1103 |
| Axes | 6 |
| Payload, kg | 16 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 140 |
| Controller | R-30iB Plus |
| Type | Articulated robot |
| Motion range, ° | |
|---|---|
| J1 | 340 |
| J2 | 235 |
| J3 | 340 |
| J4 | 380 |
| J5 | 360 |
| J6 | 900 |
| Maximum speed, °/s | |
|---|---|
| J1 | 290 |
| J2 | 270 |
| J3 | 270 |
| J4 | 430 |
| J5 | 450 |
| J6 | 730 |
| Protection | |
|---|---|
| Body | IP54 |
| Wrist & J3 arm | IP67 |
