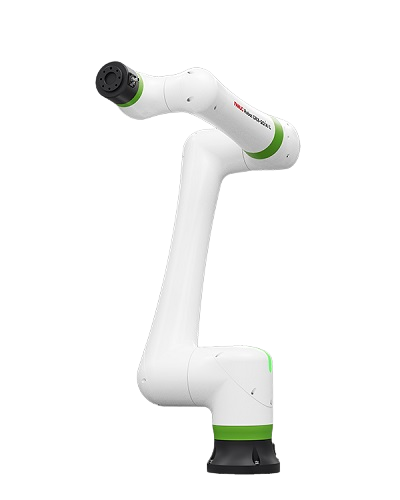

Cobot FANUC CRX-20iA/L
The CRX-20iA/L collaborative robot, with its 20 kg payload, 1,418 mm reach and impressive flip-down motion, is the perfect solution for manufacturers with little or no robotics experience. The CRX series offers a brand new FANUC programming interface with simple drag-and-drop functionality on the tablet teach pendant. Easy programming combined with world-renowned FANUC technology, proven reliability and sensitive contact detection allows the CRX-20iA/L to work safely alongside people in a wide range of manufacturing and industrial applications. The CRX-20iA/L is IP67 rated for protection against dust and liquid ingress in harsh industrial environments and fully complies with ISO 10218-1 safety standards. Due to its very low weight, the CRX can be easily installed in many applications such as machine maintenance, material handling or palletizing.
Features:
High precision
Safe interaction with humans
Load capacity 20 kg
Working range 1418 mm
- Manufacturer
-
- Reach
- 1418 mm
- Payload
- 20 kg
- Model
- CRX-20iA/L
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | CRX-20iA/L |
| Country | Japan |
| Reach, mm | 1418 |
| Axes | 6 |
| Payload, kg | 20 |
| Repeatability mm, mm | ± 0.04 |
| Weight kg, kg | 41 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 360 |
| J3 | 540 |
| J4 | 380 |
| J5 | 360 |
| J6 | 450 |
| Maximum speed, °/s | |
|---|---|
| J1 | 80 |
| J2 | 80 |
| J3 | 120 |
| J4 | 112 |
| J5 | 90 |
| J6 | 112 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
