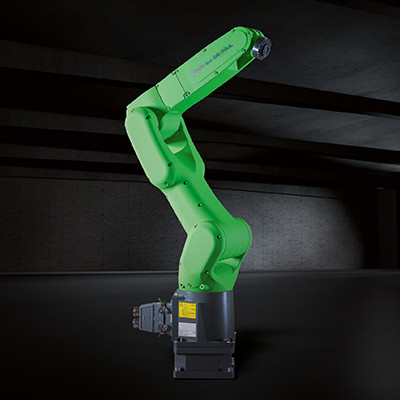

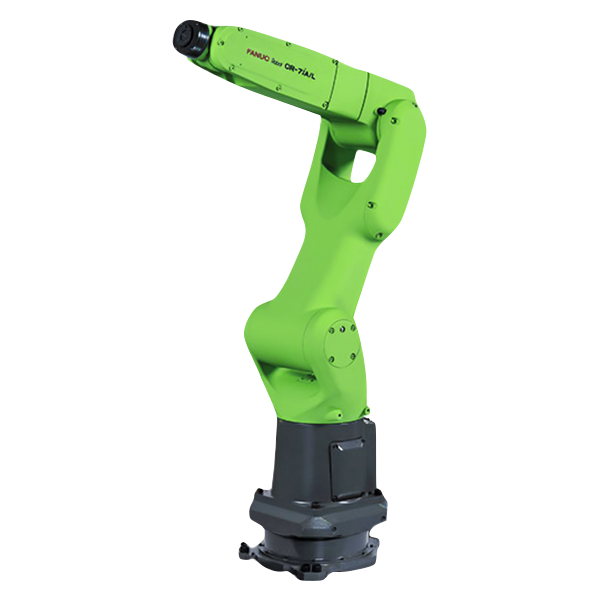

Cobot FANUC CR-7iA/L

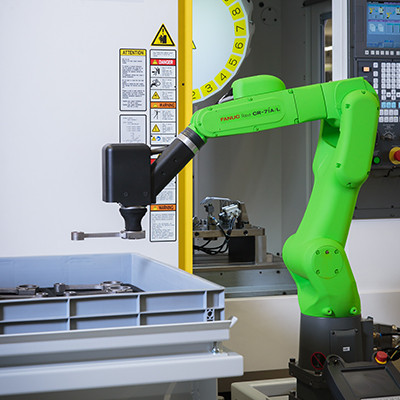

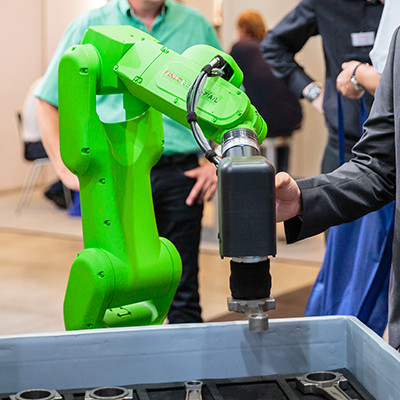

FANUC CR-7iA/L is a long-range model of the CR-7iA. The CR-7iA/L is based on the FANUC LR Mate series robots. It can handle up to 7 kg of payload with a working range of 911 mm. The CR-7iA/L is an ideal solution for sorting, assembly, inspection, machine maintenance and parts handling.
Features:
Various mounting options
Working range 911 mm
Safe interaction with humans
Does not require protective fences
Ability to work in confined spaces
- Manufacturer
-
- Reach
- 911 mm
- Payload
- 7 kg
- Model
- CR-7iA/L
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | CR-7iA/L |
| Reach, mm | 911 |
| Axes | 6 |
| Payload, kg | 7 |
| Repeatability mm, mm | ± 0.01 |
| Weight kg, kg | 55 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 340 |
| J2 | 166 |
| J3 | 383 |
| J4 | 380 |
| J5 | 240 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 1000 |
| J2 | 1000 |
| J3 | 1000 |
| J4 | 1000 |
| J5 | 1000 |
| J6 | 1000 |
