Cobot FANUC CR-15iA

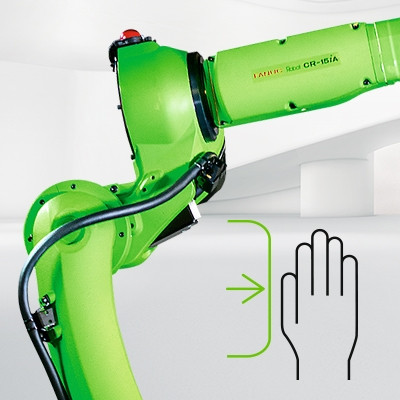

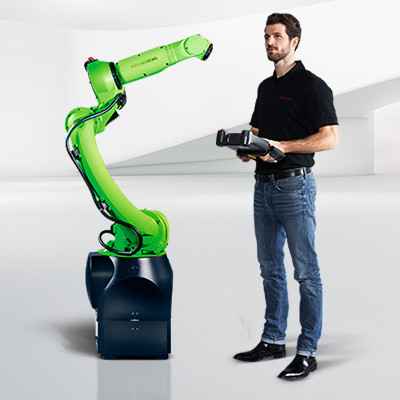

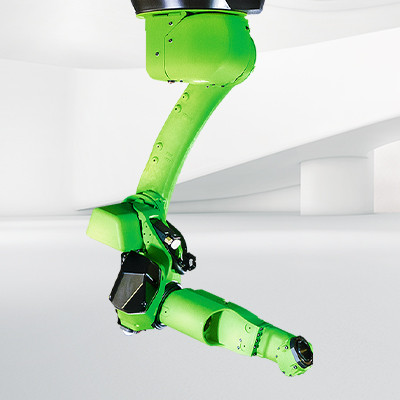

The FANUC CR-15iA collaborative robot combines a 15 kg payload capacity with a 1441 mm reach, making it a great solution for a variety of different applications. Like all FANUC robots, the CR-15iA uses proven technology and a highly sensitive sensor built into its base. As a result, the CR-15iA collaborative robot is not only extremely reliable, but also an incredibly safe, high-performance robot that can work around people without the need for a safety fence.

Features:

Working range 1441 mm
Safe work side by side with a person
Does not require protective fences
Load capacity 15 kg

Manufacturer

Reach: CR-15iA mm
Payload: 15 kg

Model: CR-15iA
Axes: 6

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	CR-15iA
Reach, mm	CR-15iA
Axes	6

Payload, kg	15
Repeatability mm, mm	± 0.02
Weight kg, kg	255
Controller	R-30iB Plus

Motion range, °
J1	340
J2	180
J3	305
J4	380
J5	280
J6	900

Maximum speed, °/s
J1	800/1500
J2	800/1500
J3	800/1500
J4	800/1500
J5	800/1500
J6	800/1500
