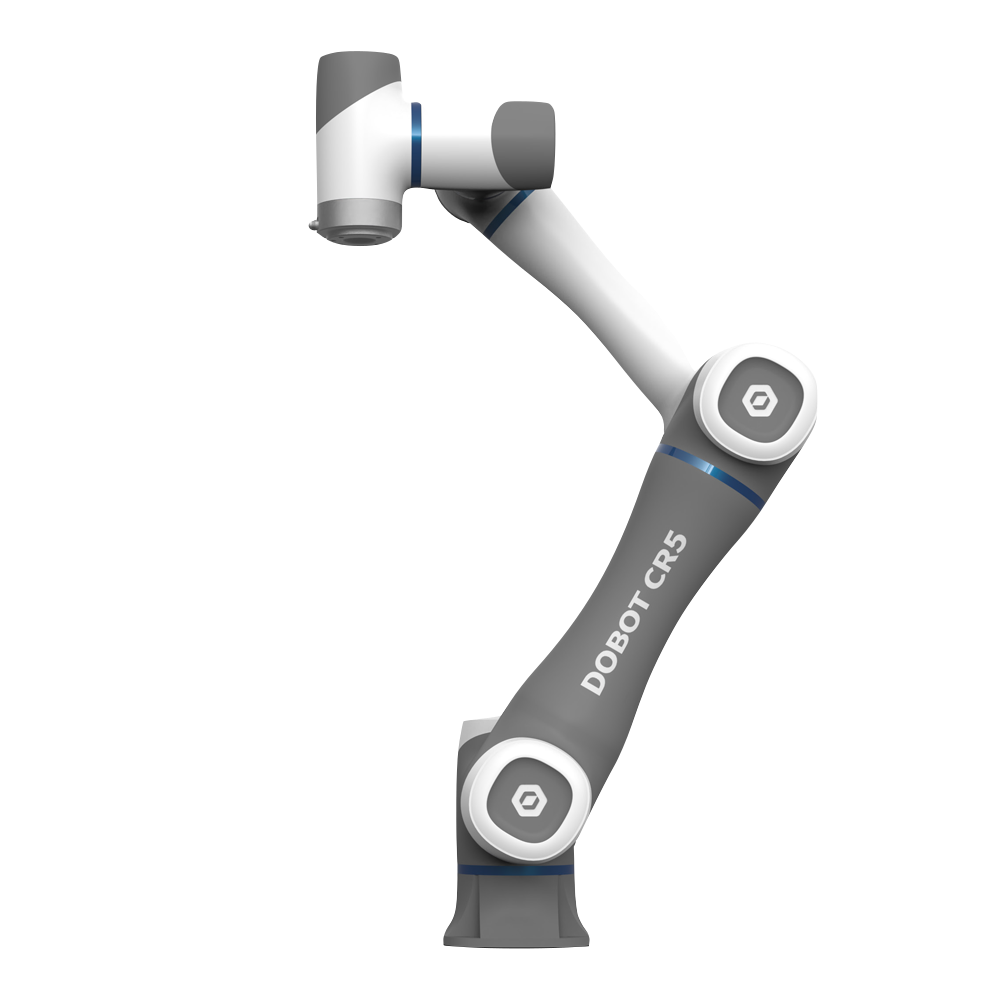

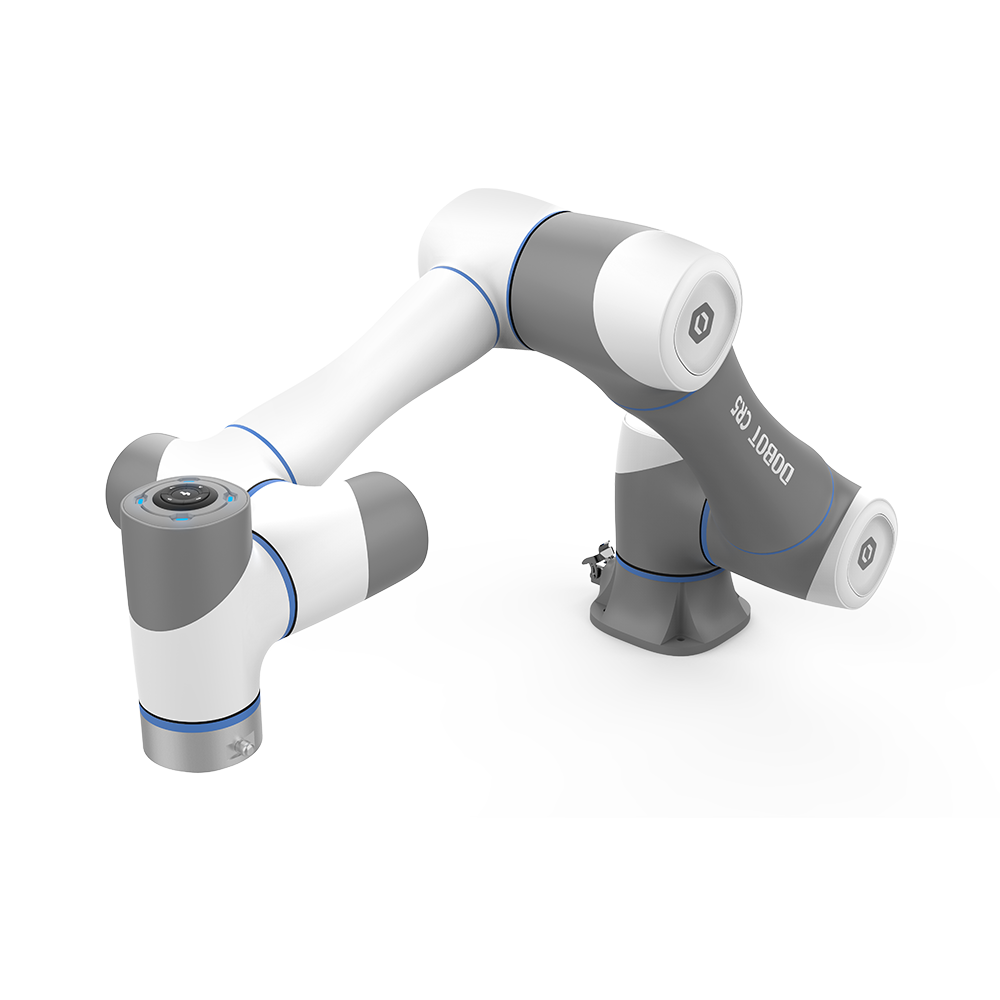

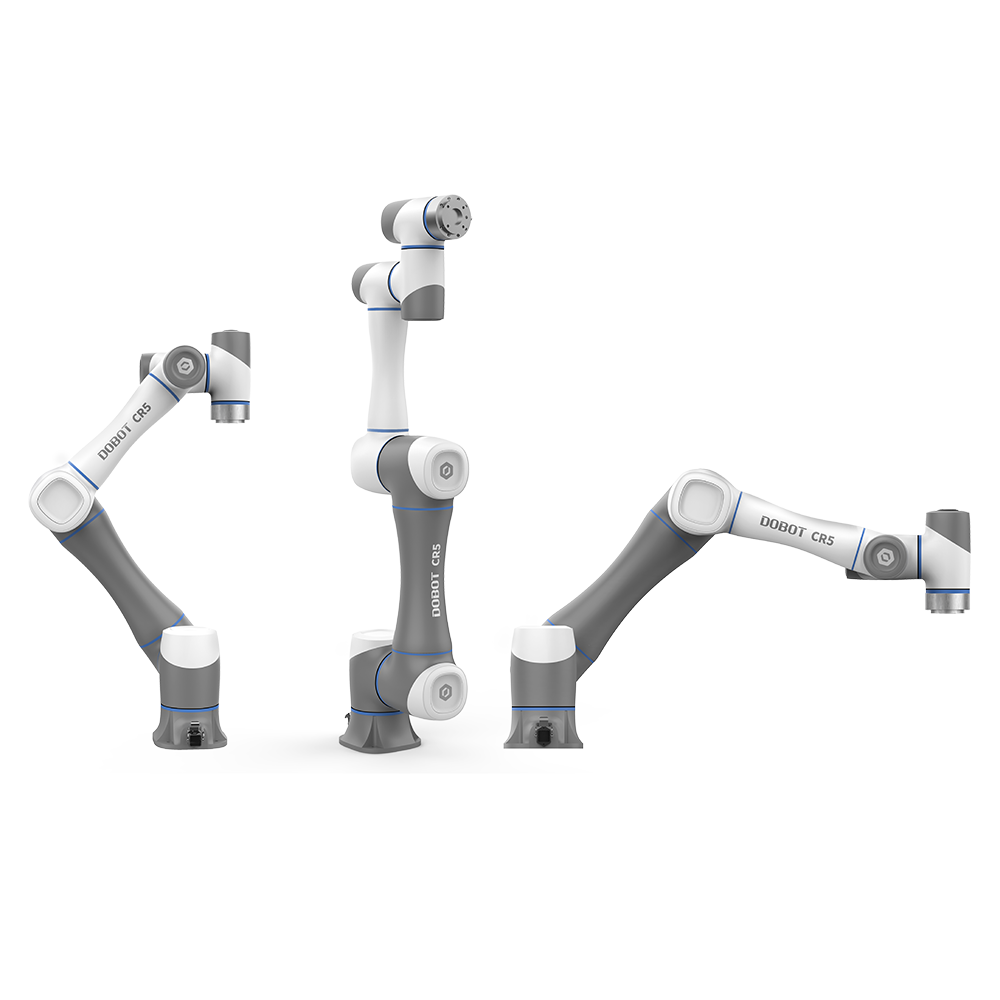

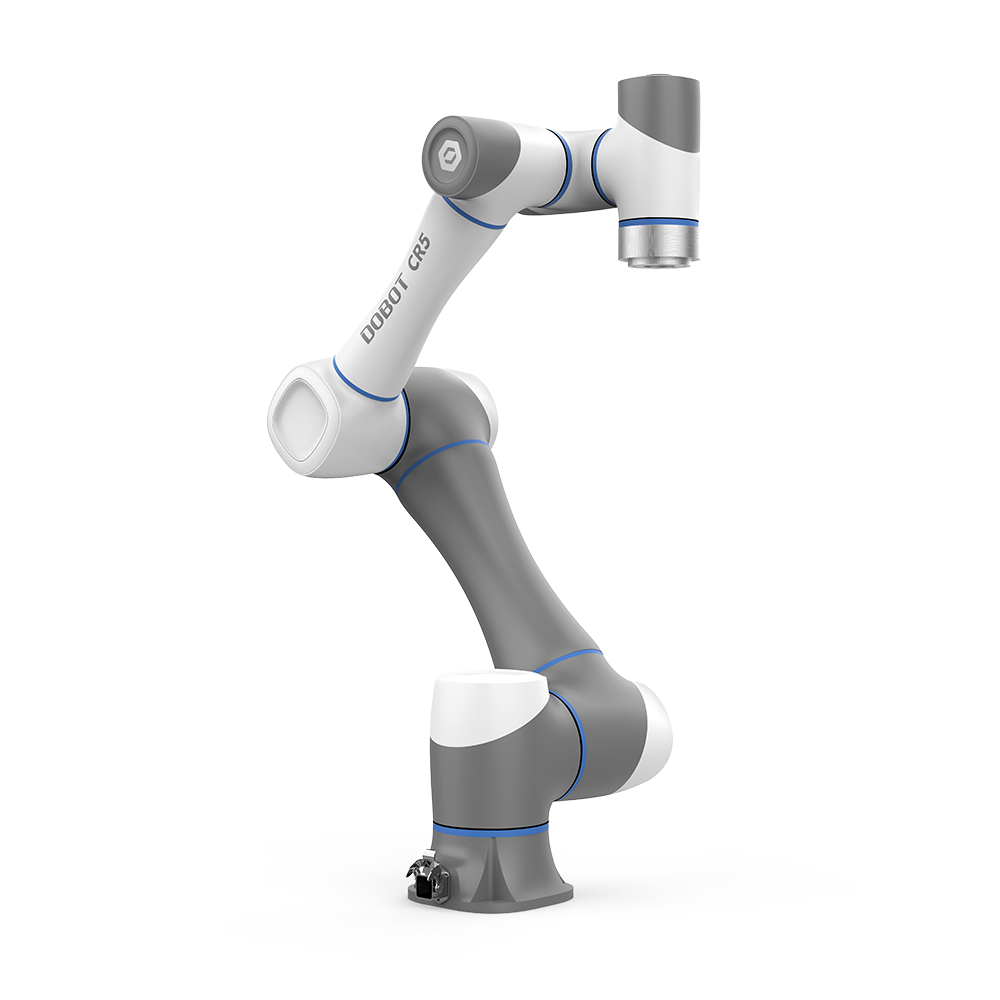

Cobot DOBOT CR5

Reach: 900 mm
Payload: 5 kg

Model: CR5
Axes: 6

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Model	CR5
Reach, mm	900
Axes	6

Payload, kg	5
Repeatability mm, mm	± 0.02
Weight kg, kg	25

Motion range, °
J1	360
J2	360
J3	160
J4	360
J5	360
J6	360

Maximum speed, °/s
J1	180
J2	180
J3	180
J4	180
J5	180
J6	180
