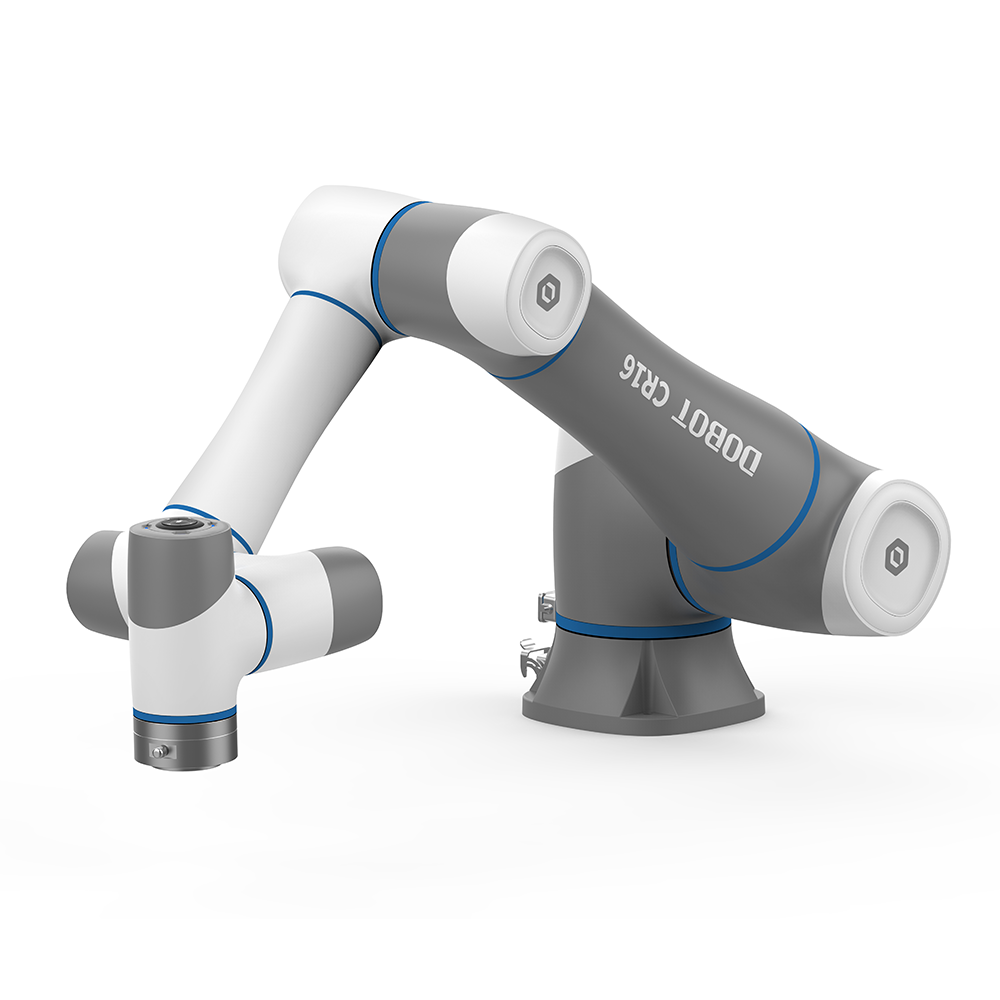

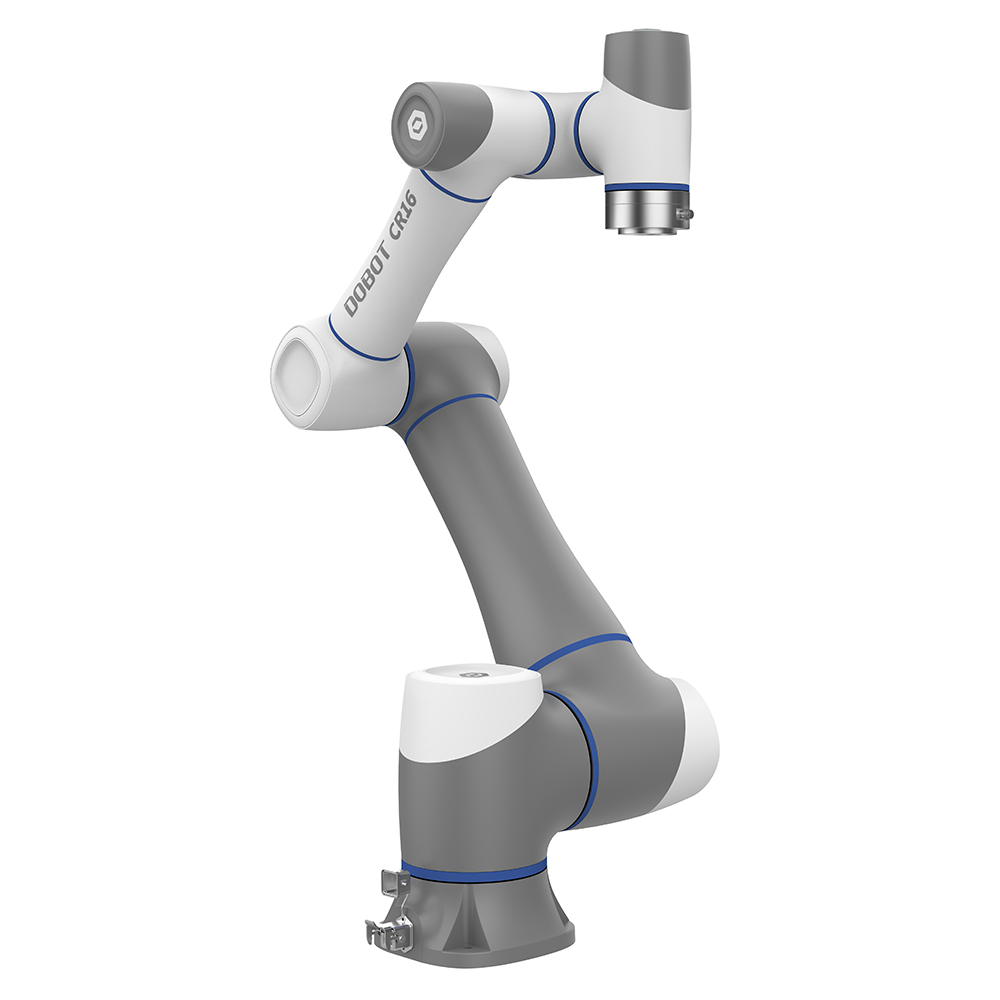

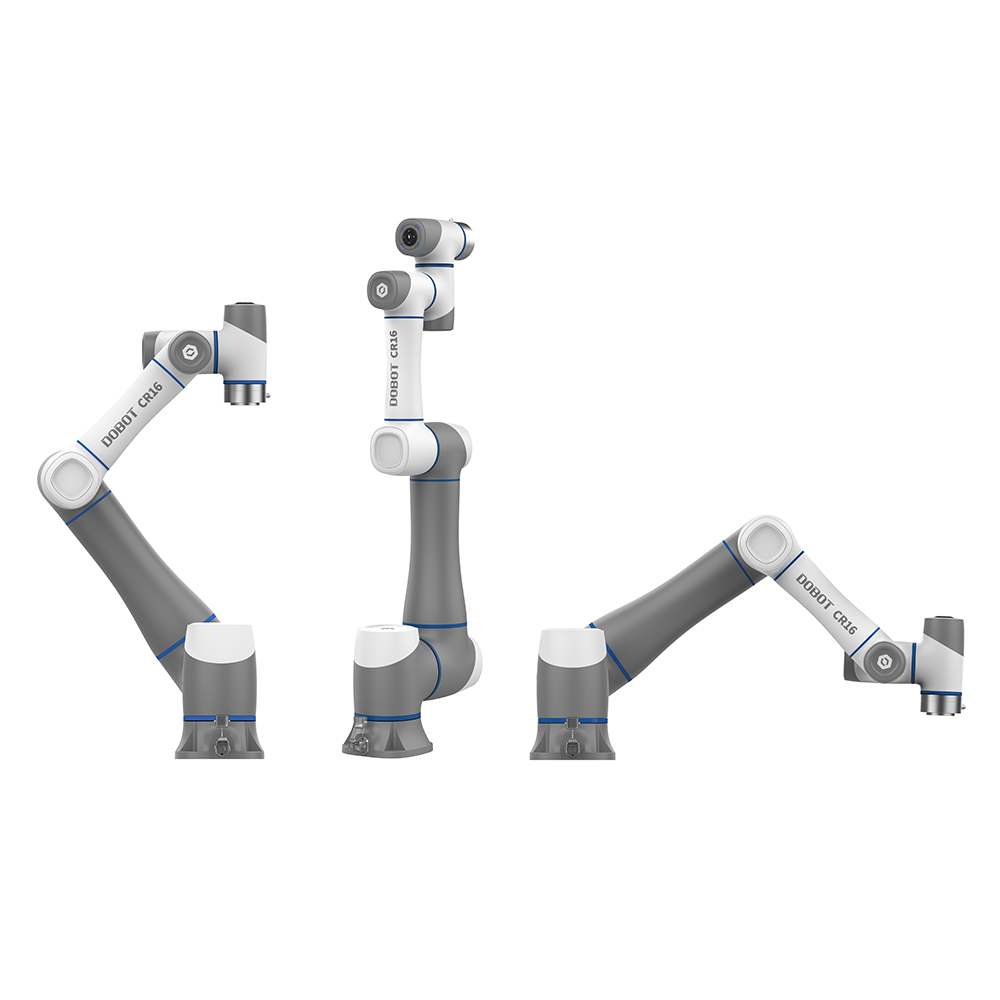

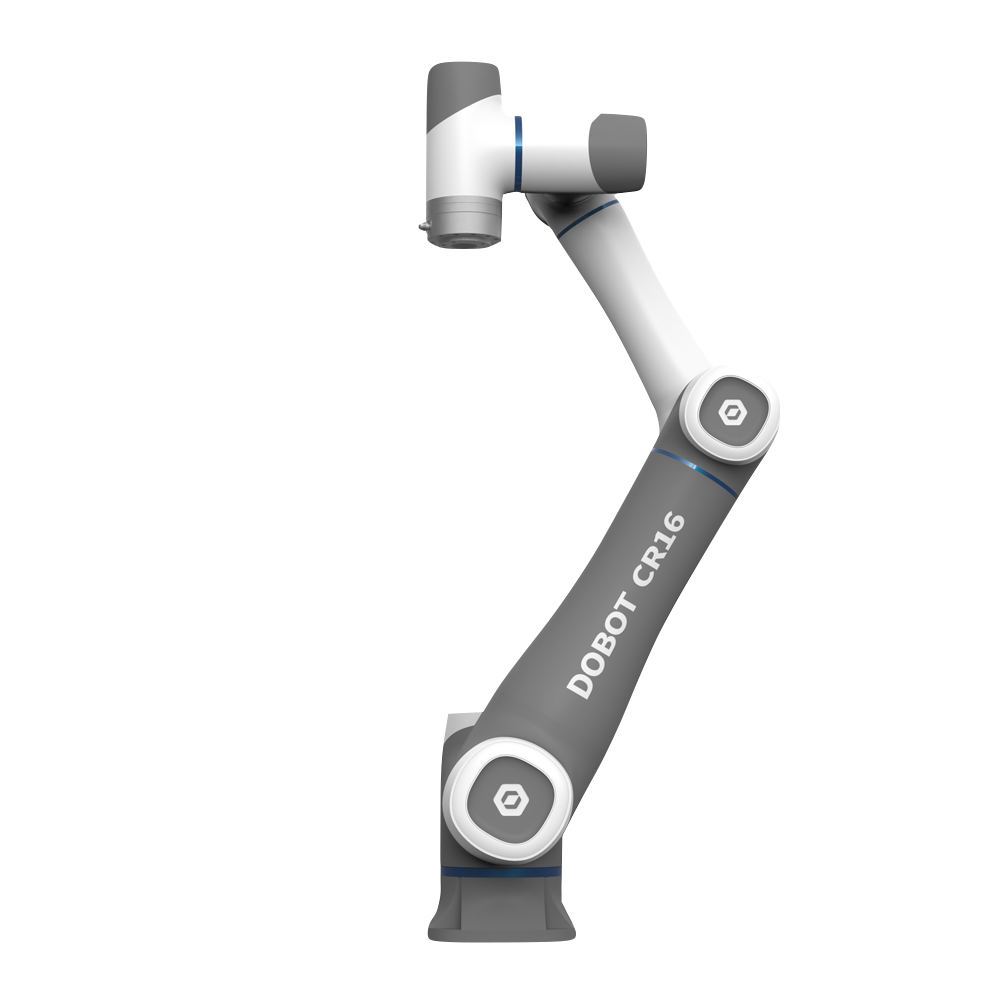

Cobot DOBOT CR16

Manufacturer

Reach: 1000 mm
Payload: 16 kg

Model: CR16
Axes: 6

Solutions

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	DOBOT
Model	CR16
Reach, mm	1000
Axes	6

Payload, kg	16
Repeatability mm, mm	± 0.03
Weight kg, kg	40

Motion range, °
J1	360
J2	360
J3	160
J4	360
J5	360
J6	360

Maximum speed, °/s
J1	120
J2	120
J3	180
J4	180
J5	180
J6	180
