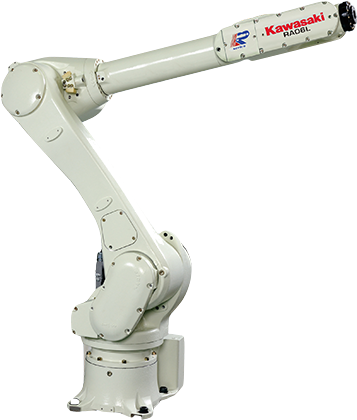

Welding Robot Kawasaki RA006L

RA006L 6-axis industrial welding robot from Kawasaki with a payload of 6 kg and a working range of 1650 mm. RA006L is equipped with special software for arc welding, which allows for quick and easy programming of the technological process. The adaptive welding function allows for the adjustment of the robot's position, stroke and speed during the welding process. The flexibility and high accuracy of Kawasaki robots ensure uninterrupted quality and maximum productivity, which in turn makes them an ideal solution for arc welding automation.

Features:

  • Compact design

  • High speed and positioning accuracy

  • Working range 1650 mm

  • Load capacity 6 kg

Manufacturer
Reach
1650 mm
Payload
6 kg
Model
RA006L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model RA006L
Reach, mm 1650
Axes 6
Payload, kg 6
Repeatability mm, mm ± 0.03
Weight kg, kg 150
Controller F60

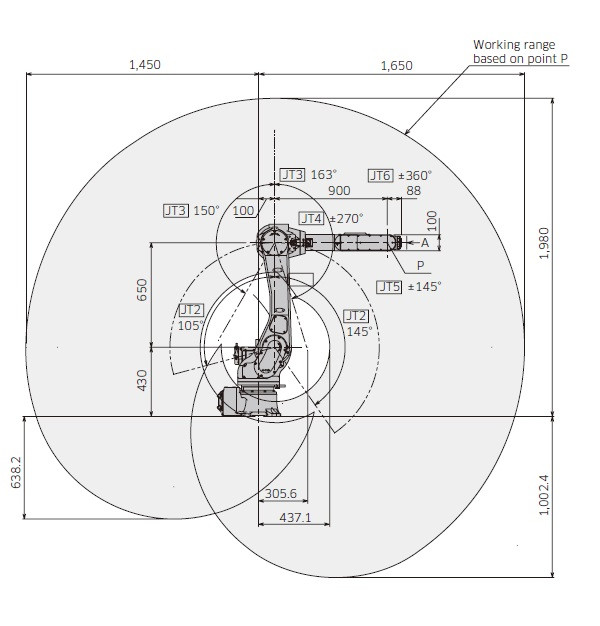

Motion range, °
J1 ± 180
J2 + 145/-105
J3 +150/-163
J4 ± 270
J5 ± 145
J6 ± 360
Maximum speed, °/s
J1 250
J2 250
J3 215
J4 365
J5 380
J6 700
