Welding Robot Kawasaki BX165N

BX165N is a 6-axis hollow wrist industrial robot from Kawasaki, capable of handling objects weighing up to 165 kg. The BX165N features high speed and positioning accuracy, has an average working range of 2325 mm and is suitable for spot welding automation, machine maintenance, assembly and material handling.

Features:

  • High speed and positioning accuracy

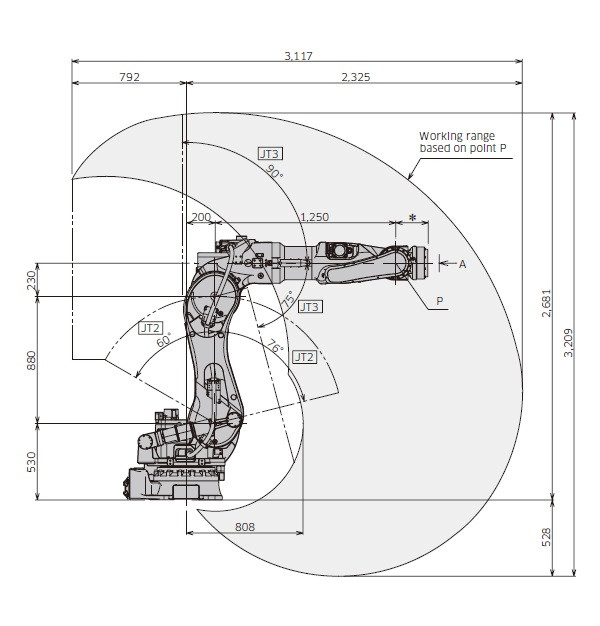

  • Working range 2325 mm

  • Load capacity 165 kg

Manufacturer
Reach
2325 mm
Payload
165 kg
Model
BX165N
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model BX165N
Reach, mm 2325
Axes 6
Payload, kg 165
Repeatability mm, mm ± 0.06
Weight kg, kg 890
Controller E02
Motion range, °
J1 ± 160
J2 + 76/-60
J3 +90/-75
J4 ± 210
J5 ± 125
J6 ± 210
Maximum speed, °/s
J1 120
J2 110
J3 130
J4 170
J5 170
J6 280
