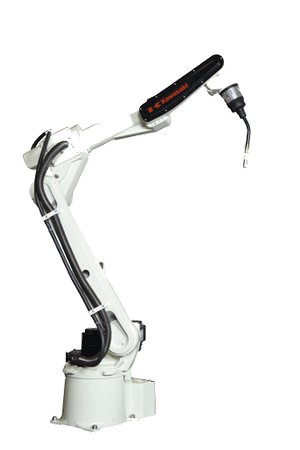

Welding Robot Kawasaki BA006L

BA006L 6-axis hollow wrist industrial welding robot from Kawasaki with a payload of 6 kg and a working range of 2036 mm. BA006L is equipped with special software for arc welding, which allows for quick and easy programming of the technological process. The adaptive welding function allows for adjustment of the robot's position, stroke and speed during the welding process. The flexibility and high precision of Kawasaki robots ensure uninterrupted quality and maximum productivity, which in turn makes them an ideal solution for arc welding automation.

Features:

  • Hollow and compact design

  • High speed and positioning accuracy

  • Working range 2036 mm

  • Load capacity 6 kg

Manufacturer
Reach
2036 mm
Payload
6 kg
Model
BA006L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model BA006L
Country Japan
Reach, mm 2036
Axes 6
Payload, kg 6
Repeatability mm, mm ± 0.08
Weight kg, kg 126
Controller E01
Type Articulated robot

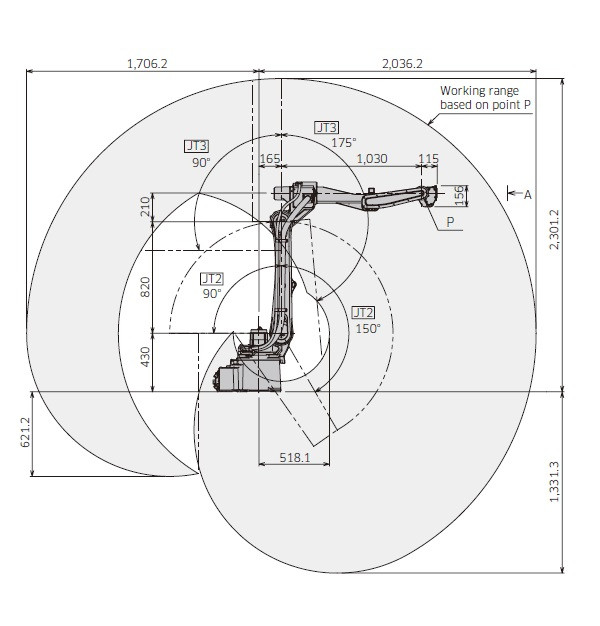

Motion range, °
J1 ± 165
J2 + 150/-90
J3 +90/-175
J4 ± 180
J5 ± 135
J6 ± 360
Maximum speed, °/s
J1 210
J2 210
J3 220
J4 430
J5 430
J6 650
