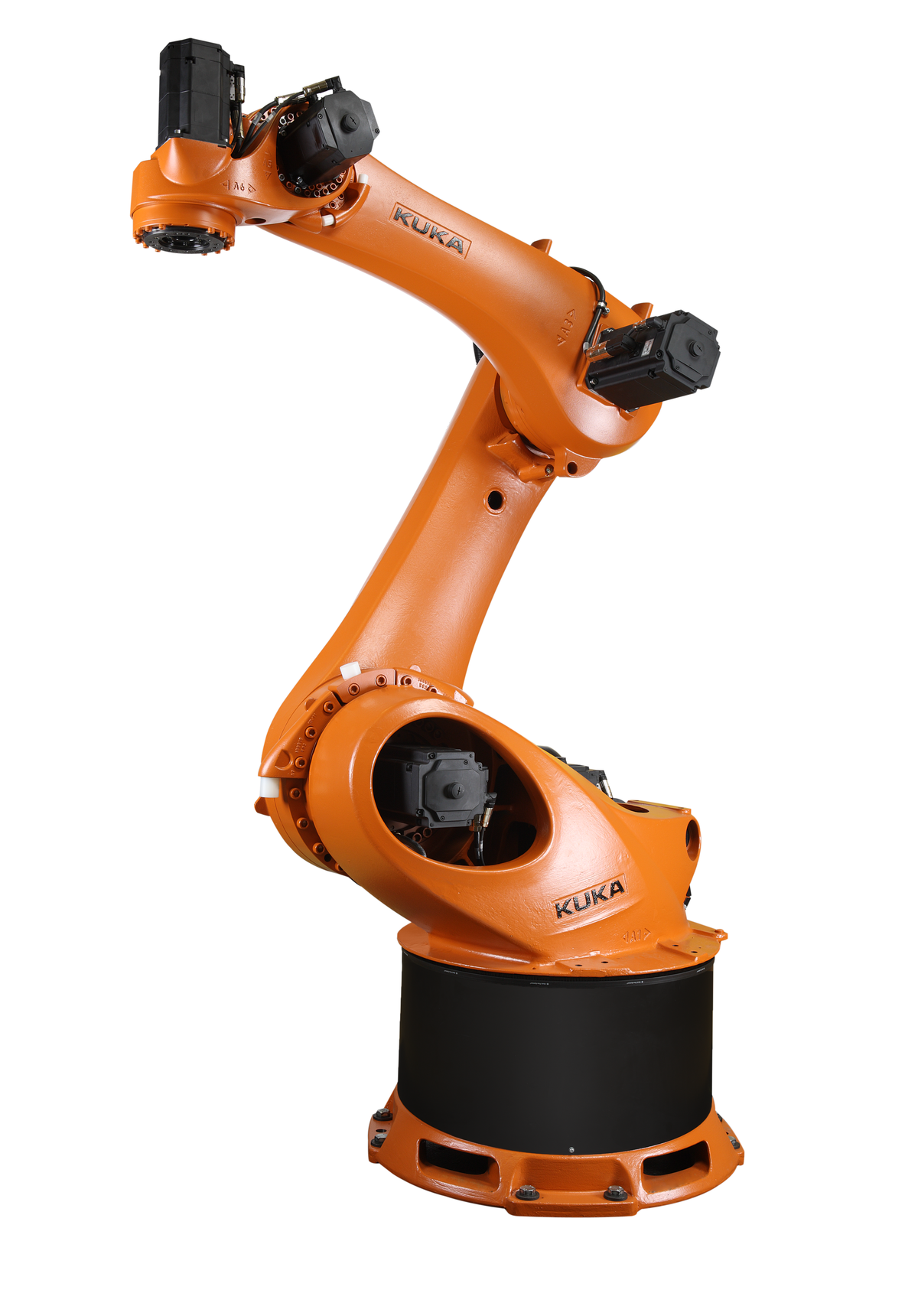

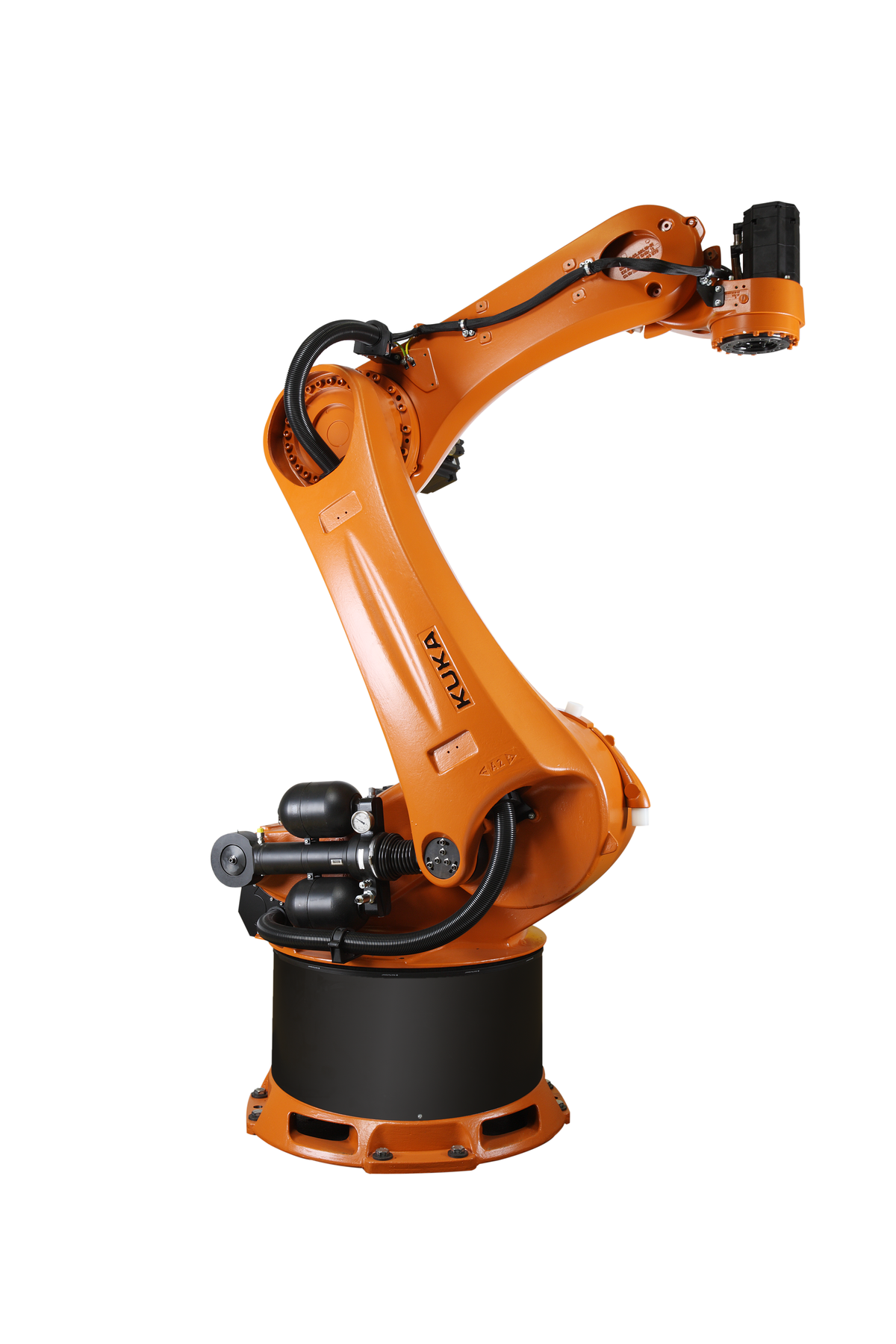

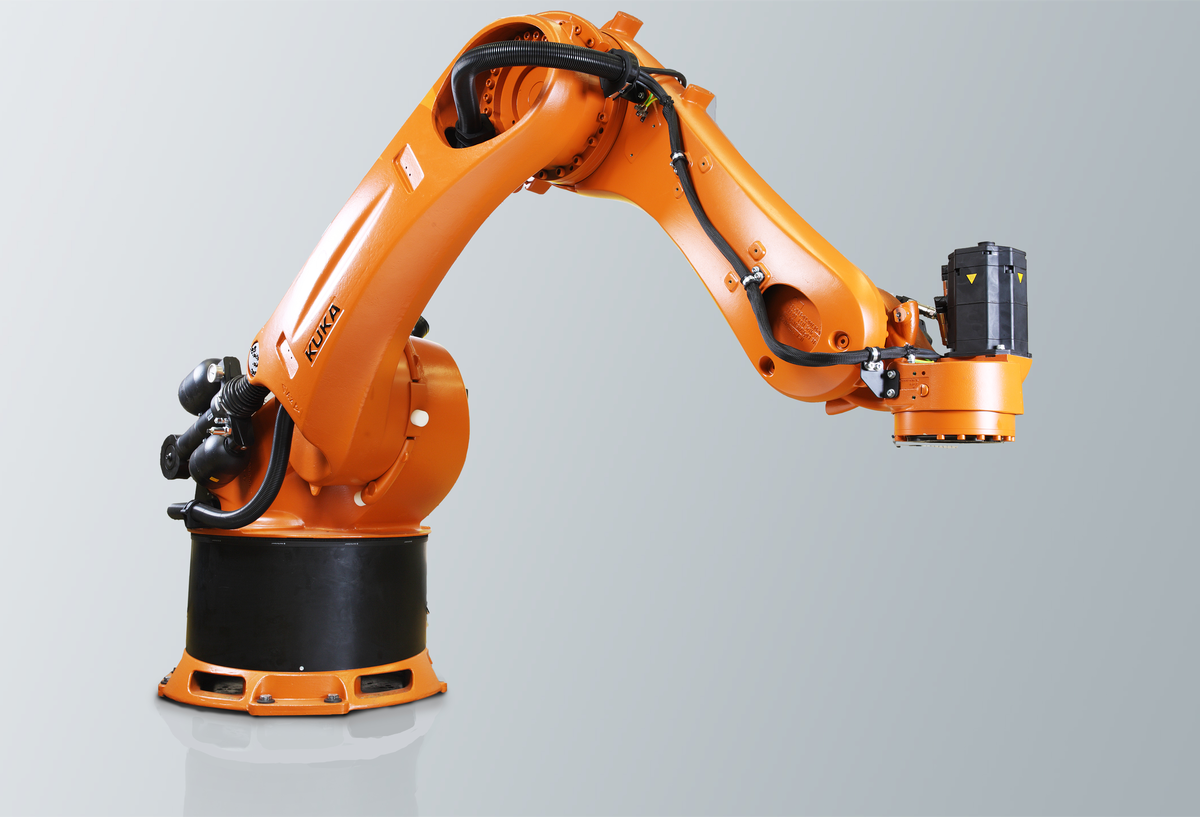

Palletizer KUKA KR 470-2 PA
KR 470-2 PA - industrial robot palletizer from KUKA with a robust and hollow design, which will allow you to easily move loads weighing up to 470 kg, quickly and accurately stack high pallets, reduce cycle time and your costs. The design of the 5-axis robot palletizer allows you to stack pallets to a height of up to 3150 mm.
Features:
High load capacity up to 470 kg
Large working range of 3150 mm
Accurate and non-stop palletizing
Hollow design
- Manufacturer
-
- Reach
- 3150 mm
- Payload
- 470 kg
- Model
- KR 470-2 PA
- Axes
- 5
- Solutions
Specifications
| Manufacturer | KUKA |
| Model | KR 470-2 PA |
| Reach, mm | 3150 |
| Axes | 5 |
| Payload, kg | 470 |
| Repeatability mm, mm | ± 0.08 |
| Weight kg, kg | 2150 |
| Controller | KR C5; KR C4 |
| Motion range, ° | |
|---|---|
| A1 | ± 185 |
| A2 | - 130/20 |
| A3 | 0/155 |
| A4 | - |
| A5 | - |
| A6 | ± 350 |
| Maximum speed, °/s | |
|---|---|
| A1 | 84 |
| A2 | 78 |
| A3 | 73 |
| A4 | - |
| A5 | - |
| A6 | 177 |
| Protection | |
|---|---|
| Protection rating (IEC 60529) | IP65 |
| Protection rating, robot wrist (IEC 60529) | IP65 |
