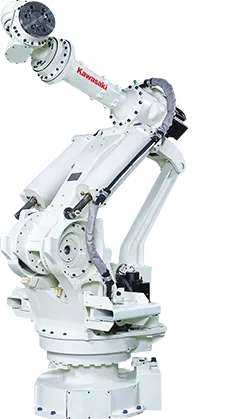

Industrial Robot Kawasaki MX700N

BX165N is a 6-axis hollow wrist industrial robot from Kawasaki, capable of handling objects weighing up to 165 kg. The BX165N features high speed and positioning accuracy, has an average working range of 2325 mm and is suitable for spot welding automation, machine maintenance, assembly and material handling.

Features:

  • High speed and positioning accuracy

  • Working range 2325 mm

  • Load capacity 165 kg

Manufacturer
Reach
2540 mm
Payload
700 kg
Model
MX700N
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model MX700N
Country Japan
Reach, mm 2540
Axes 6
Payload, kg 700
Repeatability mm, mm ± 0.1
Weight kg, kg 2860
Controller F04; E04
Type Articulated
Motion range, °
J1 ± 180
J2 + 90/-45
J3 + 20/-130
J4 ± 360
J5 ± 110
J6 ± 360
Maximum speed, °/s
J1 65
J2 50
J3 45
J4 50
J5 50
J6 95
