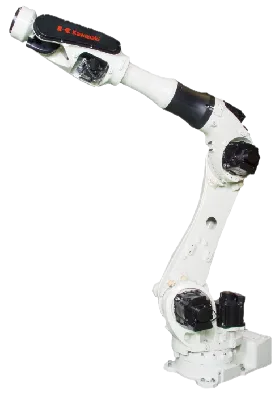

Industrial Robot Kawasaki BXP135X
BX165N is a 6-axis hollow wrist industrial robot from Kawasaki, capable of handling objects weighing up to 165 kg. The BX165N features high speed and positioning accuracy, has an average working range of 2325 mm and is suitable for spot welding automation, machine maintenance, assembly and material handling.
Features:
High speed and positioning accuracy
Working range 2325 mm
Load capacity 165 kg
- Manufacturer
-
- Reach
- 1991 mm
- Payload
- 135 kg
- Model
- BXP135X
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Kawasaki |
| Model | BXP135X |
| Country | Japan |
| Reach, mm | 1991 |
| Axes | 6 |
| Payload, kg | 135 |
| Repeatability mm, mm | ± 0.06 |
| Weight kg, kg | 880 |
| Controller | F02 |
| Type | Articulated |
| Motion range, ° | |
|---|---|
| J1 | ± 160 |
| J2 | + 76/-60 |
| J3 | +90/-75 |
| J4 | ± 210 |
| J5 | ± 125 |
| J6 | ± 210 |
| Maximum speed, °/s | |
|---|---|
| J1 | 140 |
| J2 | 105 |
| J3 | 140 |
| J4 | 220 |
| J5 | 200 |
| J6 | 300 |
| Protection | |
|---|---|
| Wrist | IP67 |
| Arm | IP54 |
