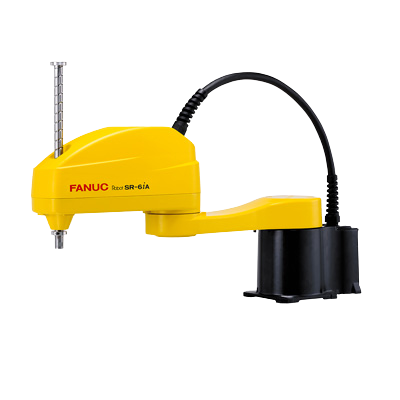

Industrial Robot FANUC SR-6iA
The FANUC SR-6iA is an excellent choice for assembly, pick and place, inspection and packaging applications requiring payloads up to 6 kg. With its compact size, the SR-6iA delivers speed and precision across a 360° range. The lightweight platform design and integrated services minimize the risk of interference with peripheral devices.
Features:
High precision
High speed
Load capacity 6 kg
Working range 650 mm
- Manufacturer
-
- Reach
- 650 mm
- Payload
- 6 kg
- Model
- SR-6iA
- Axes
- 4
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | SR-6iA |
| Country | Japan |
| Reach, mm | 650 |
| Axes | 4 |
| Payload, kg | 6 |
| Repeatability mm, mm | ± 0.01 |
| Weight kg, kg | 30 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 148 |
| J2 | 150 |
| J3 | 210mm |
| J4 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 440 |
| J2 | 700 |
| J3 | 2000mm/s |
| J4 | 2500 |
| Protection | |
|---|---|
| body | IP20 |
| wrist & J3 arm | IP20 |
