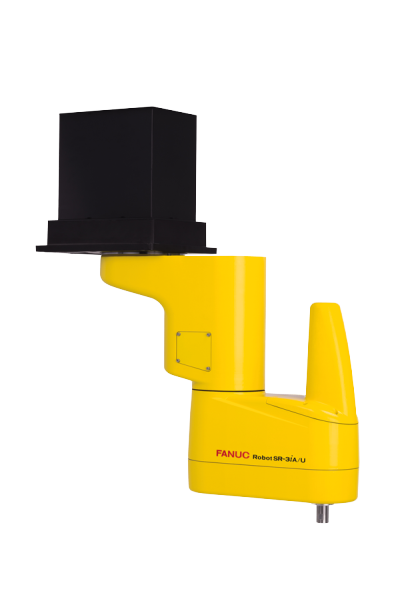

Industrial Robot FANUC SR-3iA/U

The fast and accurate ceiling-mounted FANUC SR-3iA/U robot eliminates the so-called 'dead zone' that conventional SCARA robots often suffer from. There is no space lost in the middle of the work area as the entire workspace below the arm can be used. Furthermore, the design and specifications of the SR-3iA/U make it an easy-to-configure, cost-effective alternative to more expensive delta robots in a wide range of assembly, packaging and material handling applications. With a downward thrust of 150 N, the robot can perform a multitude of 'pick and place' material handling and packaging applications thanks to its very high speed capabilities.

Features:

  • High speed

  • Load capacity 3 kg

  • Working range 350 mm

Manufacturer
fanuc-logo
Reach
350 mm
Payload
3 kg
Model
SR-3iA/U
Axes
4
Get Quotation

Specifications

Manufacturer Fanuc
Model SR-3iA/U
Country Japan
Reach, mm 350
Axes 4
Payload, kg 3
Repeatability mm, mm ± 0.01
Weight kg, kg 27
Controller R-30iB Plus
Motion range, °
J1 225
J2 225
J3 140mm
J4 720
Maximum speed, °/s
J1 610
J2 840
J3 1500mm/s
J4 3000
Protection
body IP20
wrist & J3 arm IP20
