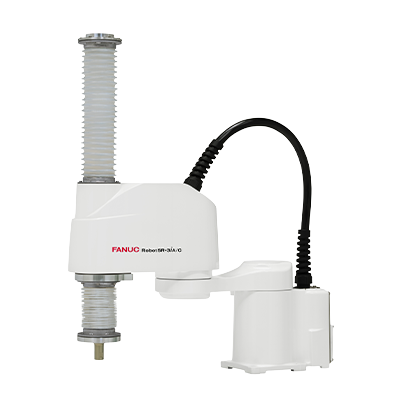

Industrial Robot FANUC SR-3iA/C
The SR-3iA/C features a white epoxy coating, food grade grease and is ISO Class 5 compliant, making it perfect for Cleanroom and Food applications. Like other FANUC SCARA robots, this model offers speed and precision across a 360° range. The lightweight platform design and integrated services minimize the risk of interference with peripheral devices.
Features:
High precision
Load capacity 3 kg
Working range 400 mm
- Manufacturer
-
- Reach
- 400 mm
- Payload
- 3 kg
- Model
- SR-3iA/C
- Axes
- 4
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | SR-3iA/C |
| Country | Japan |
| Reach, mm | 400 |
| Axes | 4 |
| Payload, kg | 3 |
| Repeatability mm, mm | ± 0.01 |
| Weight kg, kg | 21 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 284 |
| J2 | 290 |
| J3 | 200mm |
| J4 | 1440 |
| Maximum speed, °/s | |
|---|---|
| J1 | 720 |
| J2 | 780 |
| J3 | 1800mm/s |
| J4 | 3000 |
| Protection | |
|---|---|
| body | IP54 |
| wrist & J3 arm | IP54 |
