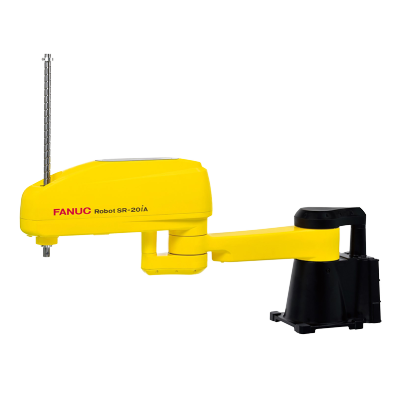

Industrial Robot FANUC SR-20iA
Internally routed cables/conduits give the robot a clean, clear appearance. This helps to minimize distracting lines and simplify the integration of the FANUC SR-20iA into any assembly or packaging line. The compact design and weight of 64kg and reach of 1100mm ensure maximum efficiency in space and range of motion.
Features:
High precision
Load capacity 20 kg
Working range 1100 mm
- Manufacturer
-
- Reach
- 1100 mm
- Payload
- 20 kg
- Model
- SR-20iA
- Axes
- 4
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | SR-20iA |
| Country | Japan |
| Reach, mm | 1100 |
| Axes | 4 |
| Payload, kg | 20 |
| Repeatability mm, mm | ± 0.02 |
| Weight kg, kg | 64 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 290 |
| J2 | 290 |
| J3 | 450/300mm |
| J4 | 1440 |
| Maximum speed, °/s | |
|---|---|
| J1 | 440 |
| J2 | 500 |
| J3 | 2800mm/s |
| J4 | 1700 |
| Protection | |
|---|---|
| body | IP20 |
| wrist & J3 arm | IP20 |
