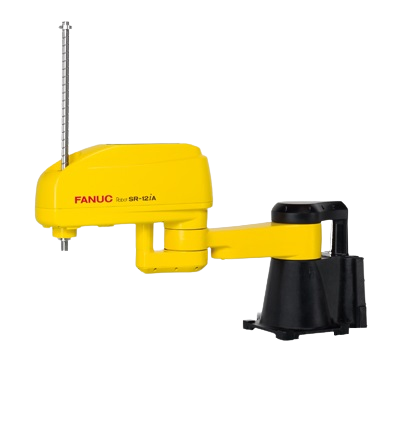

Industrial Robot FANUC SR-12iA
Small, lightweight, internally routed cables/tubes give the robot a clean and tidy appearance, minimizing distracting contours and simplifying the integration of the FANUC SR-12iA into any assembly or packaging line. The 280 x364mm size, 53kg weight and 900mm reach ensure maximum space efficiency and range of motion.
Features:
High precision
Load capacity 12 kg
Working range 900 mm
- Manufacturer
-
- Reach
- 900 mm
- Payload
- 12 kg
- Model
- SR-12iA
- Axes
- 4
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | SR-12iA |
| Country | Japan |
| Reach, mm | 900 |
| Axes | 4 |
| Payload, kg | 12 |
| Repeatability mm, mm | ± 0.01 |
| Weight kg, kg | 53 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 290 |
| J2 | 290 |
| J3 | 450/300mm |
| J4 | 1440 |
| Maximum speed, °/s | |
|---|---|
| J1 | 440 |
| J2 | 510 |
| J3 | 2800mm/s |
| J4 | 2500 |
| Protection | |
|---|---|
| body | IP20 |
| wrist & J3 arm | IP20 |
