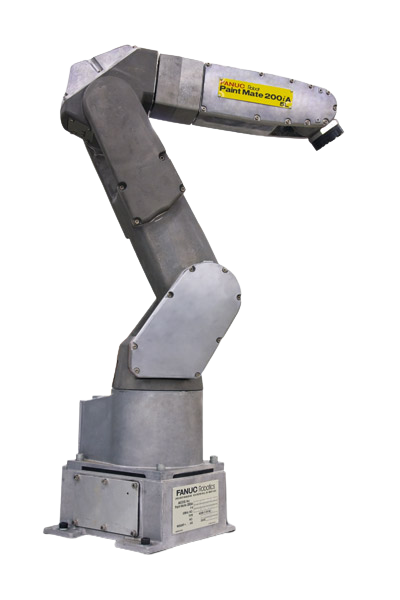

Industrial Robot FANUC Paint Mate 200iA/5L

This long-arm Paint Mate model has an increased maximum reach but the same 5kg payload as the standard version. Ideal for assembly and handling operations that require increased reach even in hazardous environments.

Features:

High precision
Load capacity 5 kg
Working range 892 mm

Manufacturer

Reach: 892 mm
Payload: 5 kg

Model: Paint Mate 200iA/5L
Axes: 6

Solutions

Painting

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	Paint Mate 200iA/5L
Country	Japan
Reach, mm	892
Axes	6

Payload, kg	5
Repeatability mm, mm	± 0.03
Weight kg, kg	27
Controller	R-30iB Plus

Motion range, °
J1	340
J2	230
J3	373
J4	380
J5	240
J6	720

Maximum speed, °/s
J1	270
J2	270
J3	270
J4	450
J5	450
J6	720
