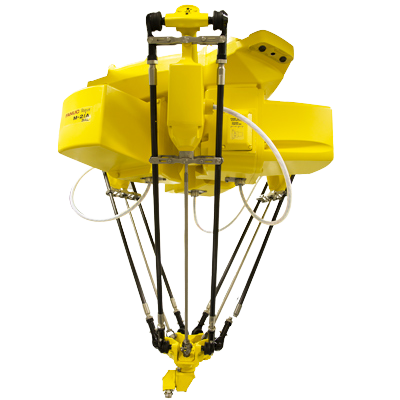

Industrial Robot FANUC M-2iA/3A
This high-speed 6-axis delta robot is ideal for picking, packing, and assembly. Its 3-axis wrist allows for free rotation of workpieces and tools as required for assembly applications. Its intelligent design also makes the best use of available workspace.
Features:
High precision
Load capacity 3 kg
Working range 800 mm
- Manufacturer
-
- Reach
- 800 mm
- Payload
- 3 kg
- Model
- M-2iA/3A
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | M-2iA/3A |
| Country | Japan |
| Reach, mm | 800 |
| Axes | 6 |
| Payload, kg | 3 |
| Repeatability mm, mm | ± 0.1 |
| Weight kg, kg | 140 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | Ø 800 x 300*3 |
| J2 | Ø 800 x 300*3 |
| J3 | Ø 800 x 300*3 |
| J4 | 720 |
| J5 | 300 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J4 | 1700 |
| J5 | 1700 |
| J6 | 1700 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP69K |
