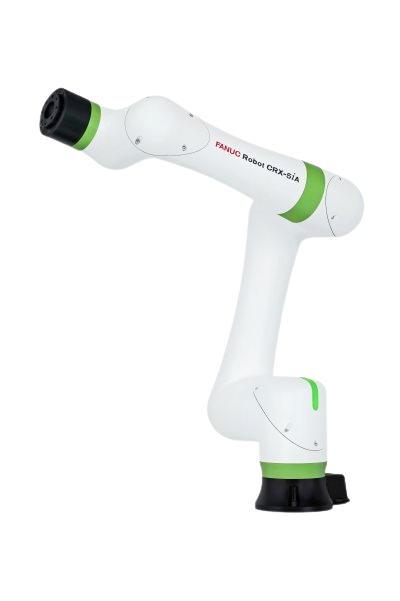

Cobot FANUC CRX-5iA
The CRX-5iA collaborative robot, with a payload of 5 kg and a reach of 994 mm, is the perfect solution for manufacturers with little or no robotics experience. The CRX series offers a FANUC programming interface with a simple drag-and-drop functionality on the tablet teach pendant. Easy programming combined with world-renowned FANUC technology, proven reliability and sensitive contact detection allows the CRX-5iA to work safely alongside people in a wide range of manufacturing and industrial tasks. The CRX-5iA is IP67 rated for protection against dust and liquid ingress in harsh industrial environments and fully complies with ISO 10218-1 safety standards. Due to its low weight of only 25 kg, the CRX-5iA can be easily installed in many applications such as assembly, machine maintenance or material handling.
Features:
High accuracy
Safe interaction with humans
Load capacity 5 kg
Working range 994 mm
- Manufacturer
-
- Reach
- 994 mm
- Payload
- 5 kg
- Model
- CRX-5iA
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | CRX-5iA |
| Country | Japan |
| Reach, mm | 994 |
| Axes | 6 |
| Payload, kg | 5 |
| Repeatability mm, mm | ± 0.03 |
| Weight kg, kg | 25 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 400 |
| J2 | 360 |
| J3 | 635 |
| J4 | 380 |
| J5 | 360 |
| J6 | 450 |
| Maximum speed, °/s | |
|---|---|
| J1 | 150 |
| J2 | 150 |
| J3 | 180 |
| J4 | 225 |
| J5 | 225 |
| J6 | 225 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
