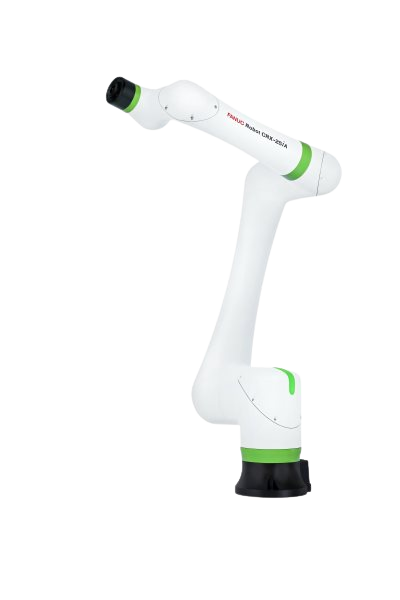

Cobot FANUC CRX-25iA
The CRX-25iA collaborative robot, with a payload of 25-30 kg and a reach of 1756-1889 mm, allows for the handling of a wide range of parts and heavier arm tools. It is the perfect solution for manufacturers with little or no robotics experience as the CRX series offers a FANUC programming interface with simple drag and drop functionality on the tablet guide pendant. Easy programming combined with world-renowned FANUC technology, proven reliability and sensitive contact detection allows the CRX-25iA to work safely alongside people in a wide range of industrial and manufacturing environments. The CRX-25iA is IP67 rated for protection against dust and liquid ingress in harsh industrial environments and fully complies with ISO 10218-1 safety standards. The CRX-25iA is designed to integrate seamlessly into a variety of applications such as machine tending, material handling, palletizing or packaging.
Features:
High precision
Safe interaction with humans
Load capacity 25-30 kg
Working range 1756-1889 mm
- Manufacturer
-
- Reach
- 1756-1889 mm
- Payload
- 25-30 kg
- Model
- CRX-25iA
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | CRX-25iA |
| Country | Japan |
| Reach, mm | 1756-1889 |
| Axes | 6 |
| Payload, kg | 25-30 |
| Repeatability mm, mm | ± 0.05 |
| Weight kg, kg | 135 |
| Controller | R-30iB Plus |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 360 |
| J3 | 540 |
| J4 | 380 |
| J5 | 360 |
| J6 | 450 |
| Maximum speed, °/s | |
|---|---|
| J1 | 80 |
| J2 | 80 |
| J3 | 120 |
| J4 | 180 |
| J5 | 180 |
| J6 | 180 |
| Protection | |
|---|---|
| body | IP67 |
| wrist & J3 arm | IP67 |
