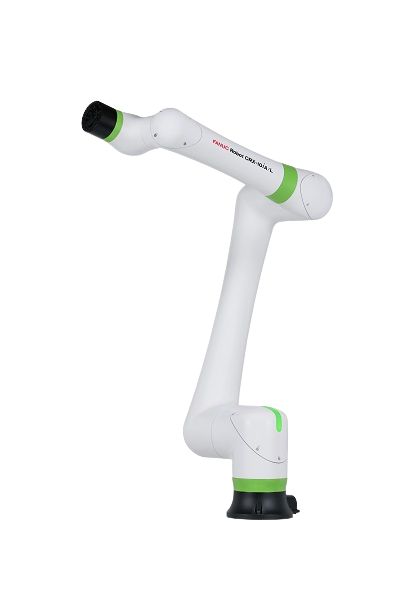

Cobot FANUC CRX-10iA/L

Weighing just 39 kg, the sleek white robot arm is designed to perform a highly functional flip-down motion to pick a part from the front table and place it on the rear table in one smooth motion. The CRX-10iA/L is highly protected against dust or oil leaks common in industrial environments and fully complies with ISO 10218-1 safety standards. Due to its extremely low weight, the CRX can be easily installed in a variety of applications such as automated guided vehicles (AGVs).

Features:

  • High precision

  • Load capacity 10 kg

  • Working range 1418 mm

Manufacturer
fanuc-logo
Reach
1418 mm
Payload
10 kg
Model
CRX-10iA/L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Fanuc
Model CRX-10iA/L
Country Japan
Reach, mm 1418
Axes 6
Payload, kg 10
Repeatability mm, mm ± 0.04
Weight kg, kg 40
Controller R-30iB Plus
Motion range, °
J1 360
J2 360
J3 540
J4 380
J5 360
J6 450
Maximum speed, °/s
J1 120
J2 120
J3 180
J4 180
J5 180
J6 180
Protection
body IP67
wrist & J3 arm IP67
