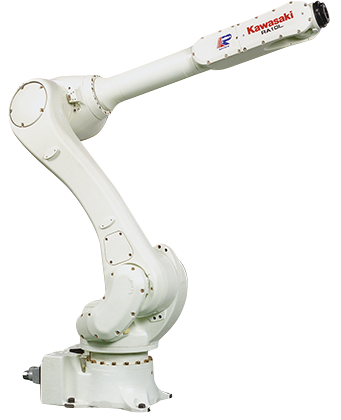

Welding Robot Kawasaki RA010L

RA010L is a 6-axis industrial welding robot from Kawasaki with a payload of 10 kg and a working range of 1925 mm. RA010L is equipped with special software for arc welding, which allows you to quickly and easily program the technological process. The adaptive welding function allows you to adjust the robot's position, stroke and speed during the welding process. The flexibility and high accuracy of Kawasaki robots ensure uninterrupted quality and maximum productivity, which in turn makes them an ideal solution for arc welding automation.

Features:

  • Compact design

  • High speed and positioning accuracy

  • Working range 1925 mm

  • Load capacity 10 kg

Manufacturer
Reach
1925 mm
Payload
10 kg
Model
RA010L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model RA010L
Reach, mm 1925
Axes 6
Payload, kg 10
Repeatability mm, mm ± 0.05
Weight kg, kg 230
Controller E01

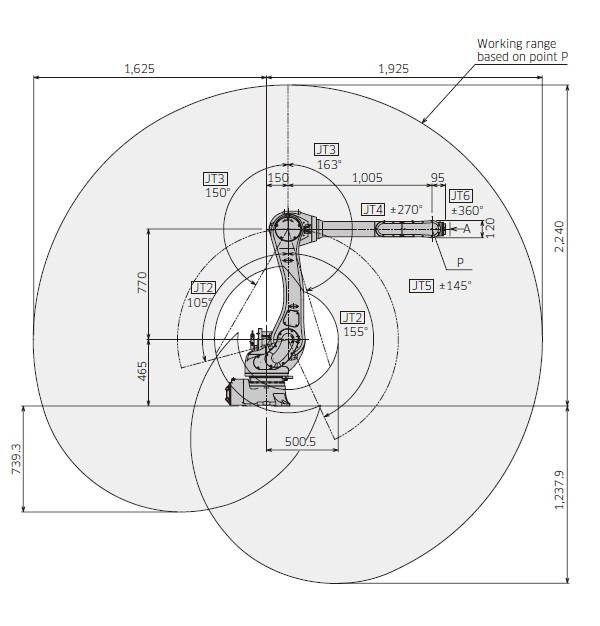

Motion range, °
J1 ± 180
J2 + 155/-105
J3 +150/-163
J4 ± 270
J5 ± 145
J6 ± 360
Maximum speed, °/s
J1 190
J2 205
J3 210
J4 400
J5 360
J6 610
