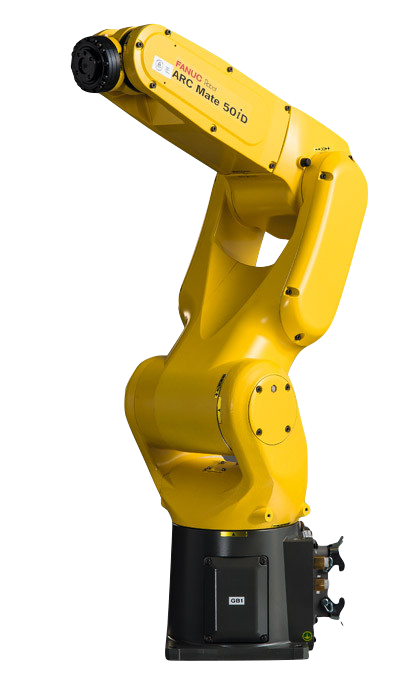

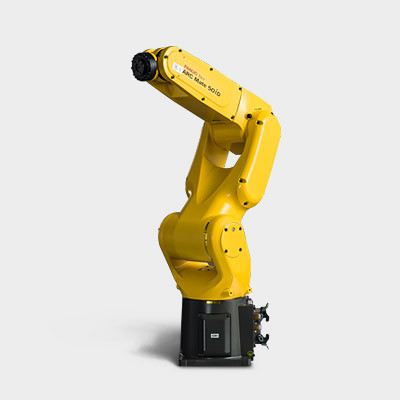

Welding Robot FANUC ARC Mate 50iD
ARC Mate 50iD 6-axis industrial arc welding robot from Fanuc. The 50iD is suitable for welding in confined spaces thanks to its compact design, has a reach of 717 mm and a payload of 7 kg.
Features:
Compact design
High performance
Ability to work in limited spaces
Perfect accuracy
- Manufacturer
-
- Reach
- 717 mm
- Payload
- 7 kg
- Model
- ARC Mate 50iD
- Axes
- 6
- Solutions
Specifications
| Manufacturer | Fanuc |
| Model | ARC Mate 50iD |
| Reach, mm | 717 |
| Axes | 6 |
| Payload, kg | 7 |
| Repeatability mm, mm | ARC Mate 50iD |
| Weight kg, kg | 25 |
| Controller | R-30iB |
| Motion range, ° | |
|---|---|
| J1 | 360 |
| J2 | 245 |
| J3 | 420 |
| J4 | 380 |
| J5 | 250 |
| J6 | 720 |
| Maximum speed, °/s | |
|---|---|
| J1 | 450 |
| J2 | 380 |
| J3 | 520 |
| J4 | 550 |
| J5 | 545 |
| J6 | 1000 |
