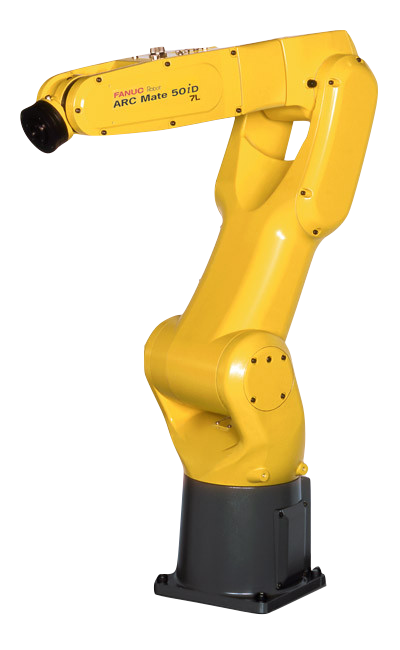

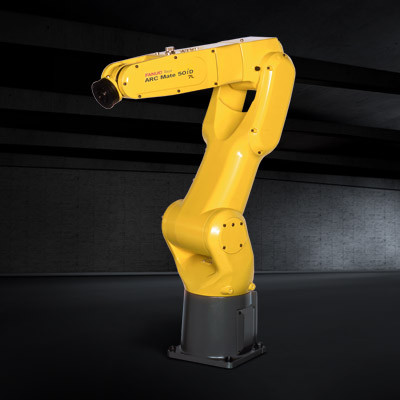

Welding Robot FANUC ARC Mate 50iD/7L

FANUC ARC Mate 50iD/7L 6-axis industrial robot for high-speed arc welding with a working radius of 911 mm. ARC Mate 50iD/7L has a thin and lightweight design, repeatability of ±0.018 mm and is capable of withstanding a load of up to 7 kg when performing precision welds.

Features:

Compact design
High performance
Perfect accuracy
Ability to work in tight spaces

Manufacturer

Reach: 911 mm
Payload: 7 kg

Model: ARC Mate 50iD/7L
Axes: 6

Solutions

Welding

Get Quotation

Name/Company name

Contact number

E-mail

Request Subject

* By clicking "Send Request", you agree to our terms of use and privacy policy

Specifications

Manufacturer	Fanuc
Model	ARC Mate 50iD/7L
Reach, mm	911
Axes	6

Payload, kg	7
Repeatability mm, mm	± 0.018
Weight kg, kg	27
Controller	R-30iB

Motion range, °
J1	360
J2	245
J3	430
J4	380
J5	250
J6	720

Maximum speed, °/s
J1	370
J2	310
J3	410
J4	550
J5	454
J6	1000
