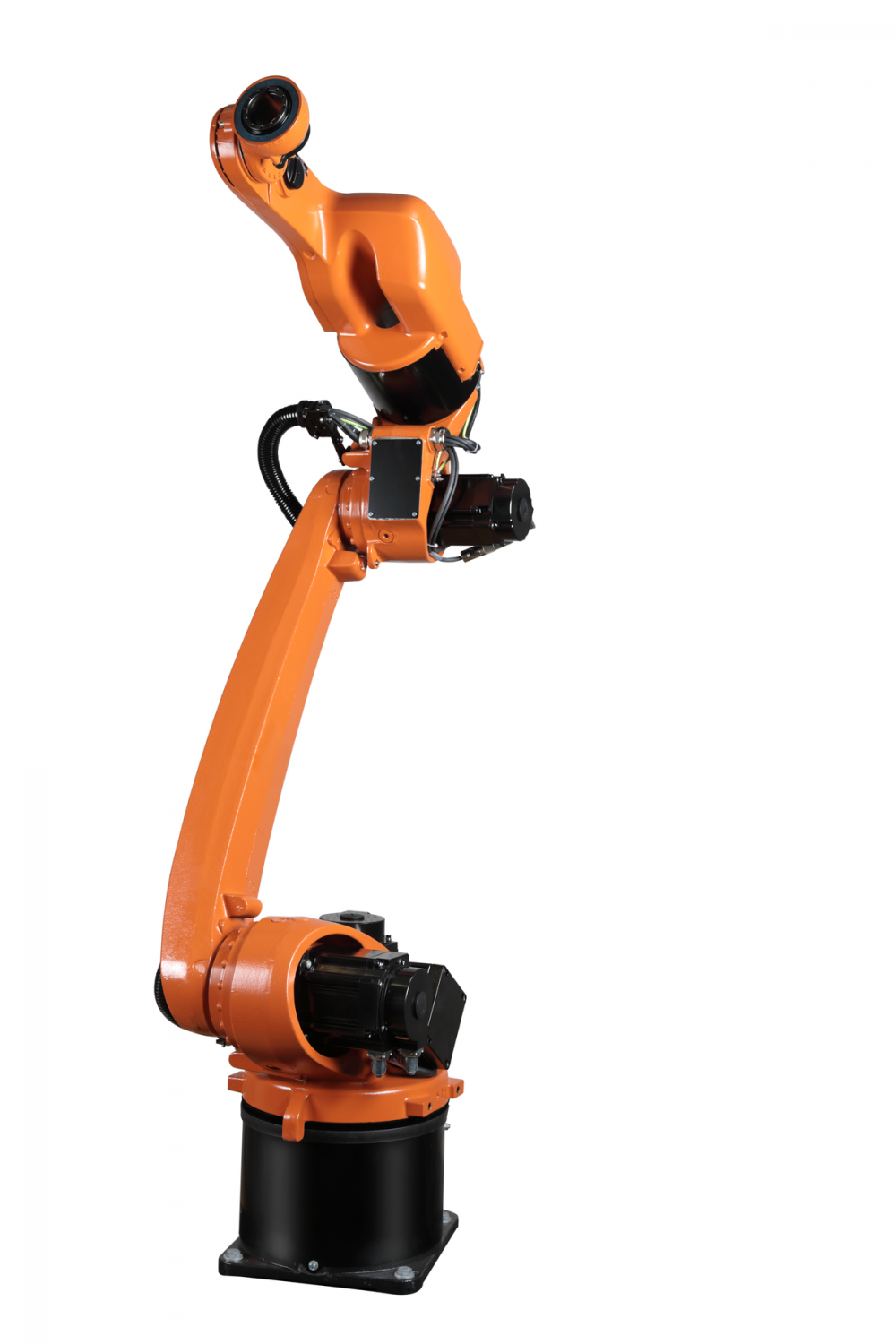

Industrial robot KUKA KR 8 R1640-2 arc HW

KR 8 R1640-2 arc HW 6-axis welding robot with compact design and hollow wrist from KUKA KR CYBERTECH ARC nano series, capable of providing maximum productivity and welding quality due to high speed and positioning accuracy.

Features:

  • Compact design

  • Large 1640mm reach

  • Hollow wrist

  • Ability to work in tight spaces

Manufacturer
Reach
1640 mm
Payload
8 kg
Model
KR 8 R1640-2 arc HW
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 8 R1640-2 arc HW
Reach, mm 1640
Axes 6
Payload, kg 8
Repeatability mm, mm ± 0.04
Weight kg, kg 255
Controller KUKA KR C4 Controller
Motion range, °
J1 ±170
J2 -185/65
J3 -119/181
J4 ±165
J5 - 115/140
J6 ±350
Maximum speed, °/s
J1 220
J2 210
J3 270
J4 430
J5 430
J6 628
