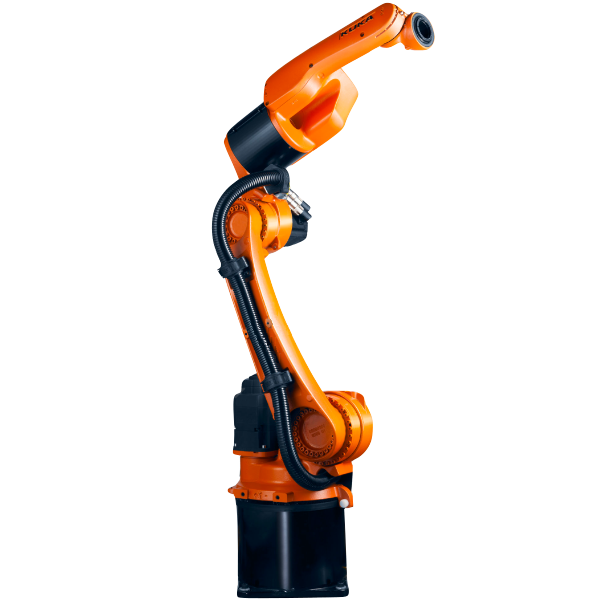

Industrial robot KUKA KR 8 R1620 arc HW

KUKA KR CYBERTECH ARC nano 8 R1620 arc HW 6-axis industrial robot with a compact design and a hollow wrist, capable of providing maximum productivity due to its high speed and positioning accuracy, with minimal maintenance and low costs.

Features:

  • Speed ​​and precision

  • Large radius of action 1621 mm

  • Various mounting options

  • Ability to work in limited spaces

  • Hollow wrist

  • Load capacity 8 kg

Manufacturer
Reach
1621 mm
Payload
8 kg
Model
KR 8 R1620 arc HW
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer KUKA
Model KR 8 R1620 arc HW
Reach, mm 1621
Axes 6
Payload, kg 8
Repeatability mm, mm ± 0.04
Weight kg, kg 184
Controller KUKA KR C4 Controller
Motion range, °
J1 ± 170
J2 - 185/65
J3 - 120/180
J4 ± 165
J5 - 115/140
J6 ± 350
Maximum speed, °/s
J1 220
J2 178
J3 270
J4 430
J5 430
J6 630
