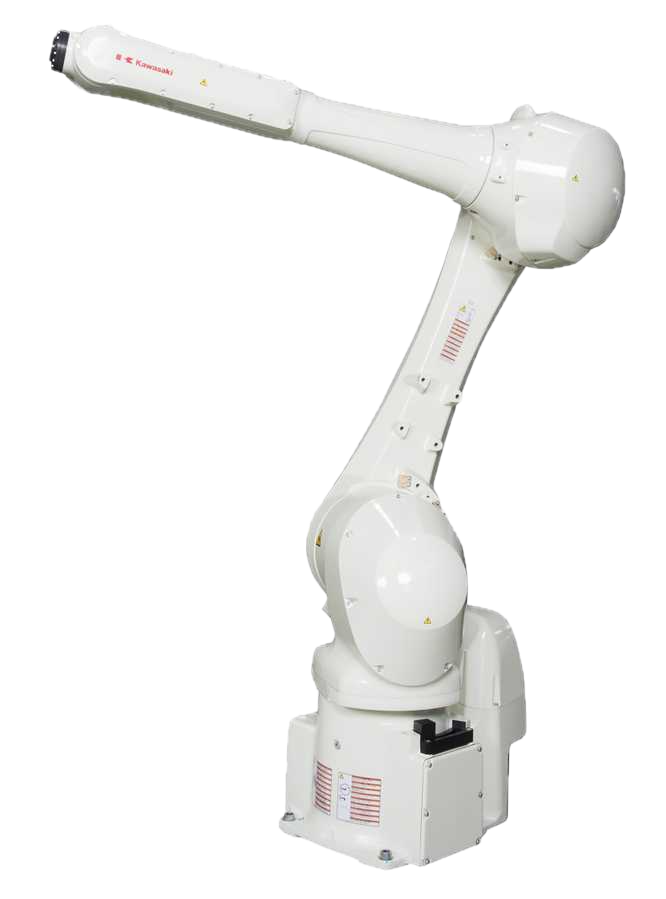

Industrial Robot Kawasaki RS025N

RA005L is a 6-axis industrial welding robot from Kawasaki with a payload of 5 kg and a working range of 903 mm. RA005L is equipped with special software for arc welding, which allows you to quickly and easily program the technological process. The adaptive welding function allows you to adjust the robot's position, stroke and speed during the welding process. The flexibility and high accuracy of Kawasaki robots ensure uninterrupted quality and maximum productivity, which in turn makes them an ideal solution for arc welding automation.

Features:

  • Compact design

  • High speed and positioning accuracy

  • Working range 903 mm

  • Load capacity 5 kg

Manufacturer
Reach
2100 mm
Payload
25 kg
Model
RS025N
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model RS025N
Country Japan
Reach, mm 2100
Axes 6
Payload, kg 25
Repeatability mm, mm ± 0.06
Weight kg, kg 270
Controller F02
Type Articulated
Motion range, °
J1 ± 180
J2 + 131/-100
J3 + 145/-161
J4 ± 270
J5 ± 145
J6 ± 360
Maximum speed, °/s
J1 215
J2 215
J3 270
J4 420
J5 420
J6 780
Protection
IP67
