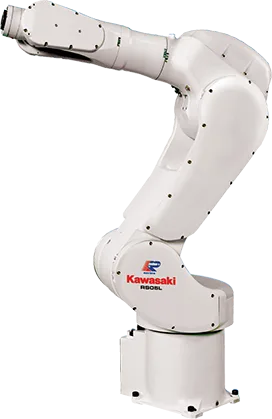

Industrial Robot Kawasaki RS005L

RA005L is a 6-axis industrial welding robot from Kawasaki with a payload of 5 kg and a working range of 903 mm. RA005L is equipped with special software for arc welding, which allows you to quickly and easily program the technological process. The adaptive welding function allows you to adjust the robot's position, stroke and speed during the welding process. The flexibility and high accuracy of Kawasaki robots ensure uninterrupted quality and maximum productivity, which in turn makes them an ideal solution for arc welding automation.

Features:

  • Compact design

  • High speed and positioning accuracy

  • Working range 903 mm

  • Load capacity 5 kg

Manufacturer
Reach
903 mm
Payload
5 kg
Model
RS005L
Axes
6
Solutions
Get Quotation

Specifications

Manufacturer Kawasaki
Model RS005L
Country Japan
Reach, mm 903
Axes 6
Payload, kg 5
Repeatability mm, mm ± 0.03
Weight kg, kg 37
Controller F60
Type Articulated
Motion range, °
J1 ± 180
J2 + 135/-80
J3 + 118/-172
J4 ± 360
J5 ± 145
J6 ± 360
Maximum speed, °/s
J1 300
J2 300
J3 300
J4 460
J5 460
J6 740
Protection
Wrist IP67
Arm IP65
